Fender: Service and Repair

Fender

Removal
1 Remove the plenum chamber panel. For additional information, refer to Plenum Chamber Service and Repair
2 Remove the front bumper cover. For additional information, refer to Front Bumper Cover
3 Remove the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield




4 Remove the fender moulding.
- Release the 4 clips.




5
NOTE:
Right-hand shown, left-hand similar.
Remove the fender air intake grille.
- Release the 9 clips.
- Remove the air ducting.




6 Remove the bumper cover clip.
- Remove the 2 bolts.

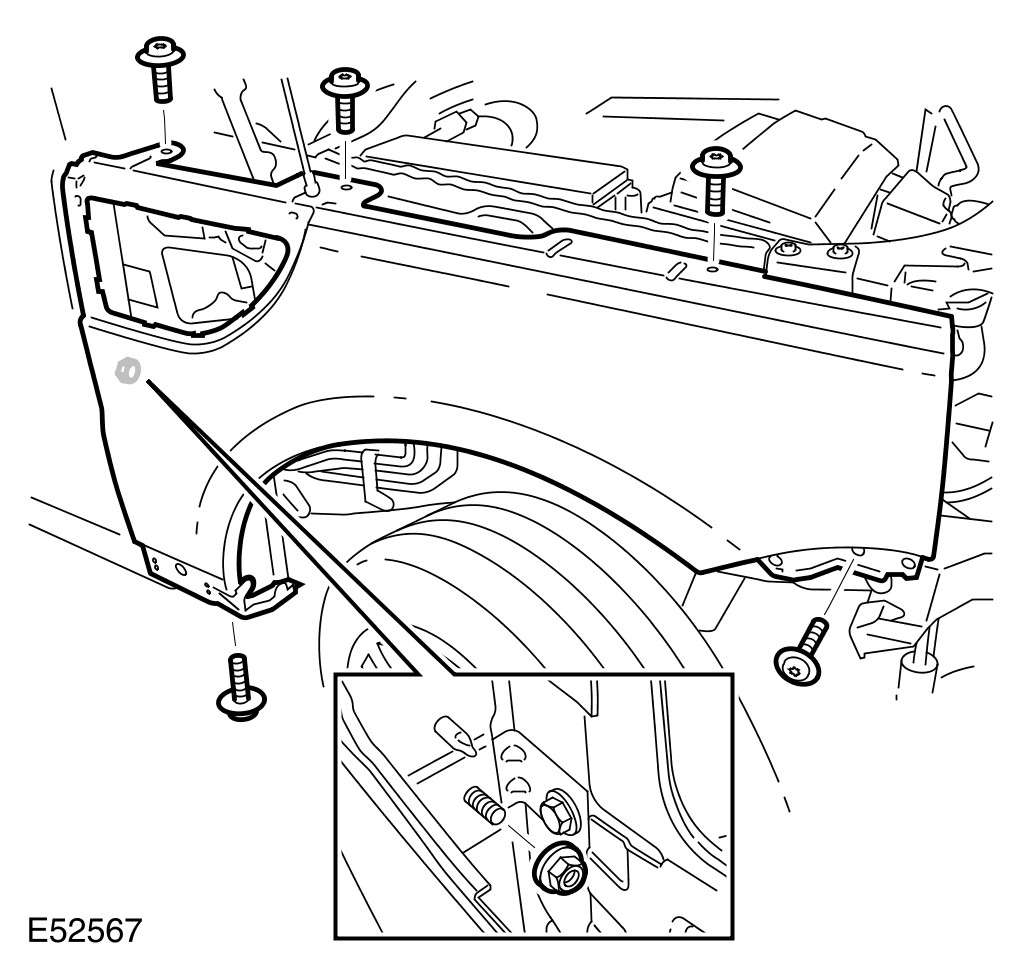

7 Remove the front fender.
- Remove the 5 Torx bolts.
- Remove the nut.




8
NOTE:
Do not disassemble further if the component is removed for access only.

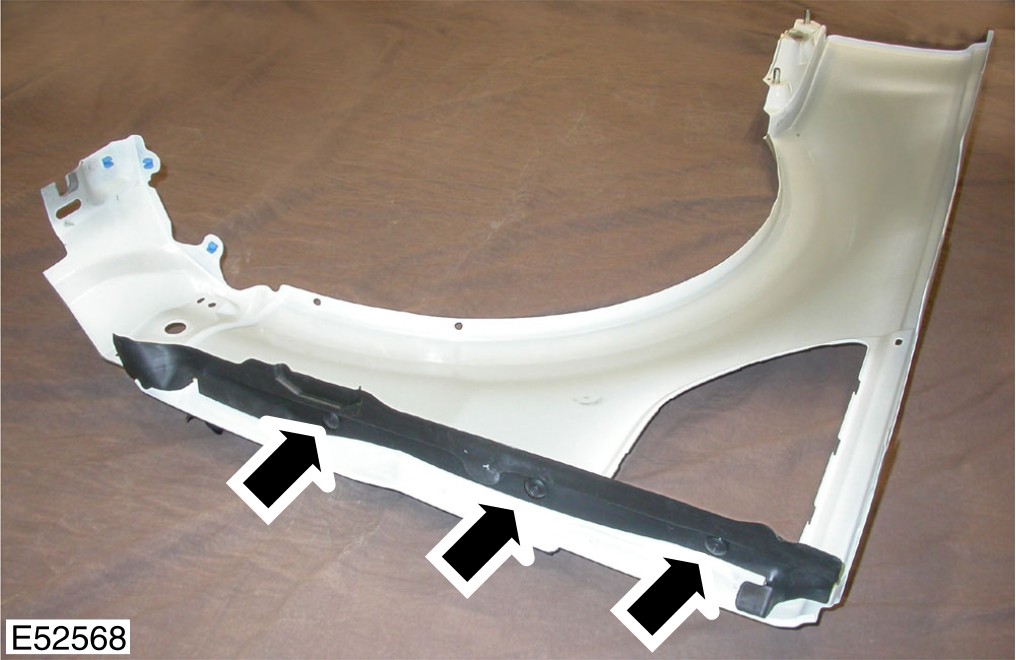

Remove the fender rear trim.
- Remove the 3 clips.

Installation
1 Install the fender rear trim.
- Secure in the 3 clips.
2 Install the front fender.
- Install the bolts and tighten to 10 Nm (7 lb.ft).
- Install the nut and tighten to 10 Nm (7 lb.ft).
3 Install the front bumper clip.
- Install the bolts and tighten to 6 Nm (4 lb.ft).
4 Install the fender air intake grille.
- Install the air ducting.
5 Install the fender moulding.
- Secure in the clips.
6 Install the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
7 Install the front bumper cover. For additional information, refer to Front Bumper Cover
8 Install the plenum chamber panel. For additional information, refer to Plenum Chamber Service and Repair
