Windshield Washer Pump: Service and Repair

Windshield Washer Pump

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the LH fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield

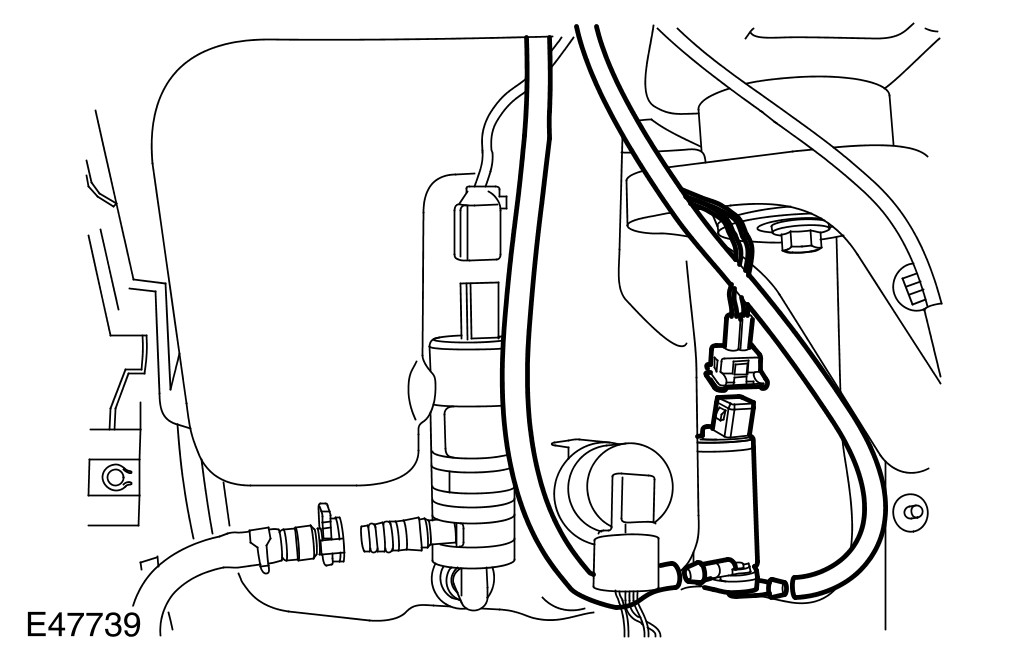

3 Release the windshield washer pump hoses.
- Drain the washer reservoir fluid.
4 Disconnect the windshield washer pump electrical connector.




5 Remove the windshield washer pump.
- Discard the O-ring seal.

Installation
1 Install the windshield washer pump.
- Install a new O-ring seal.
2 Connect the windshield washer pump electrical connector.
3 Connect the windshield washer pump hoses.
4 Install the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
5 Lower the vehicle.
6 Top-up the windshield washer reservoir.
