ABS (Antilock Brake System)
DIAGNOSTIC TROUBLE CODE CHARTHINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective DTC No. in the DTC chart.

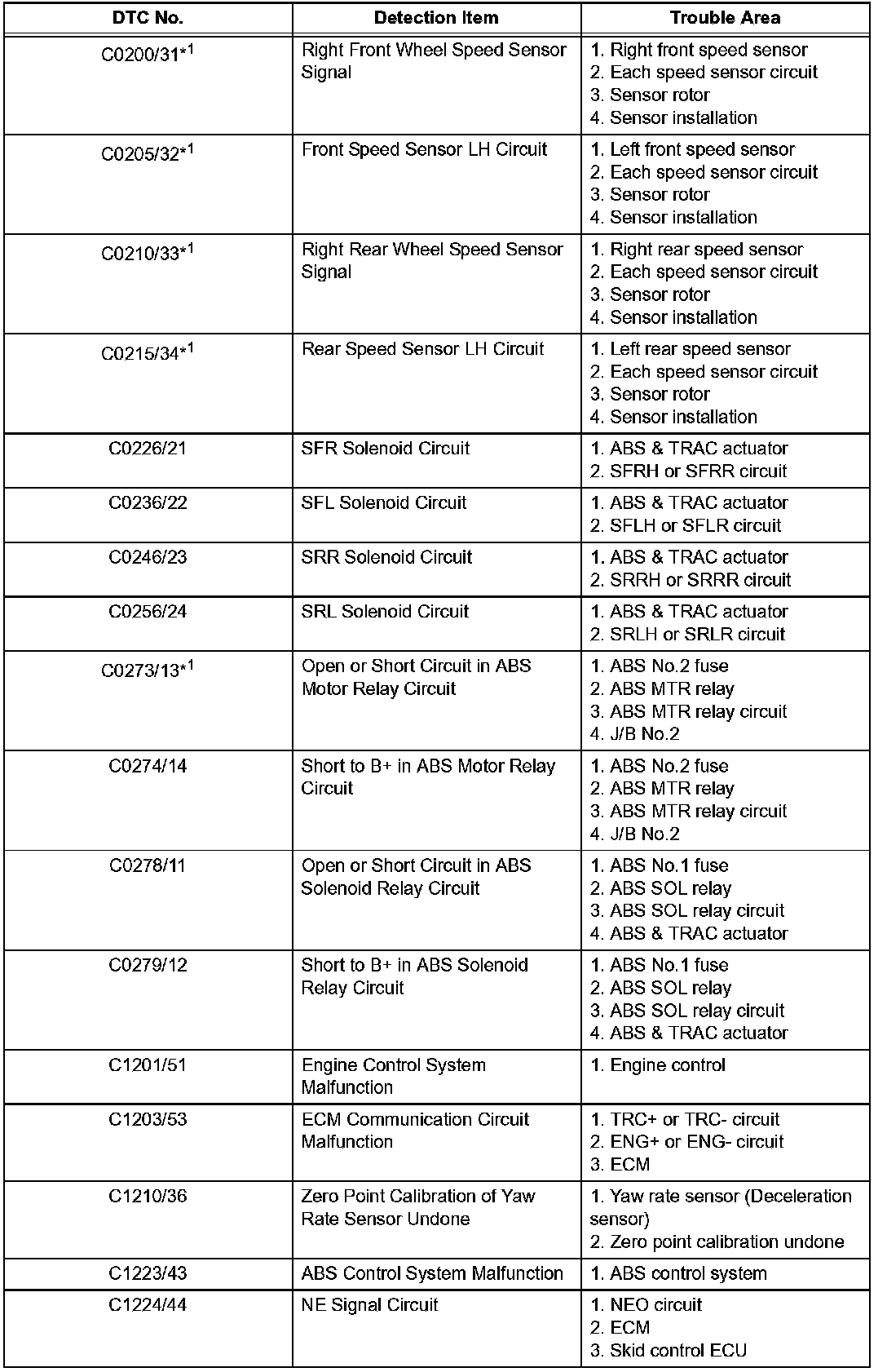

DTC C0200-C1224:
DTC C1225-C1381:
*1:
a. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
b. Clear the DTC.
*2:
a. Keep the vehicle in a stationary condition for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
b. Drive the vehicle at a speed of 31 mph (50 km/h). Then depress the brake pedal strongly for about 3 seconds.
c. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
d. Clear the DTC.
HINT:
^ In some cases, the intelligent tester cannot be used when ABS warning light remains on.
^ In some cases, the intelligent tester cannot be used when the VSC warning light remains on.
^ If any of U0121/94, U0123/62, U0124/95 and U0126/63 are displayed, inspect the CAN communication system.
