SFI System

DIAGNOSTIC TROUBLE CODE CHART

P0010-P0031:

P0032-P0102:

P0103-P0122:

P0123-P0141:

P0156-P0171:

P0172-P0220:

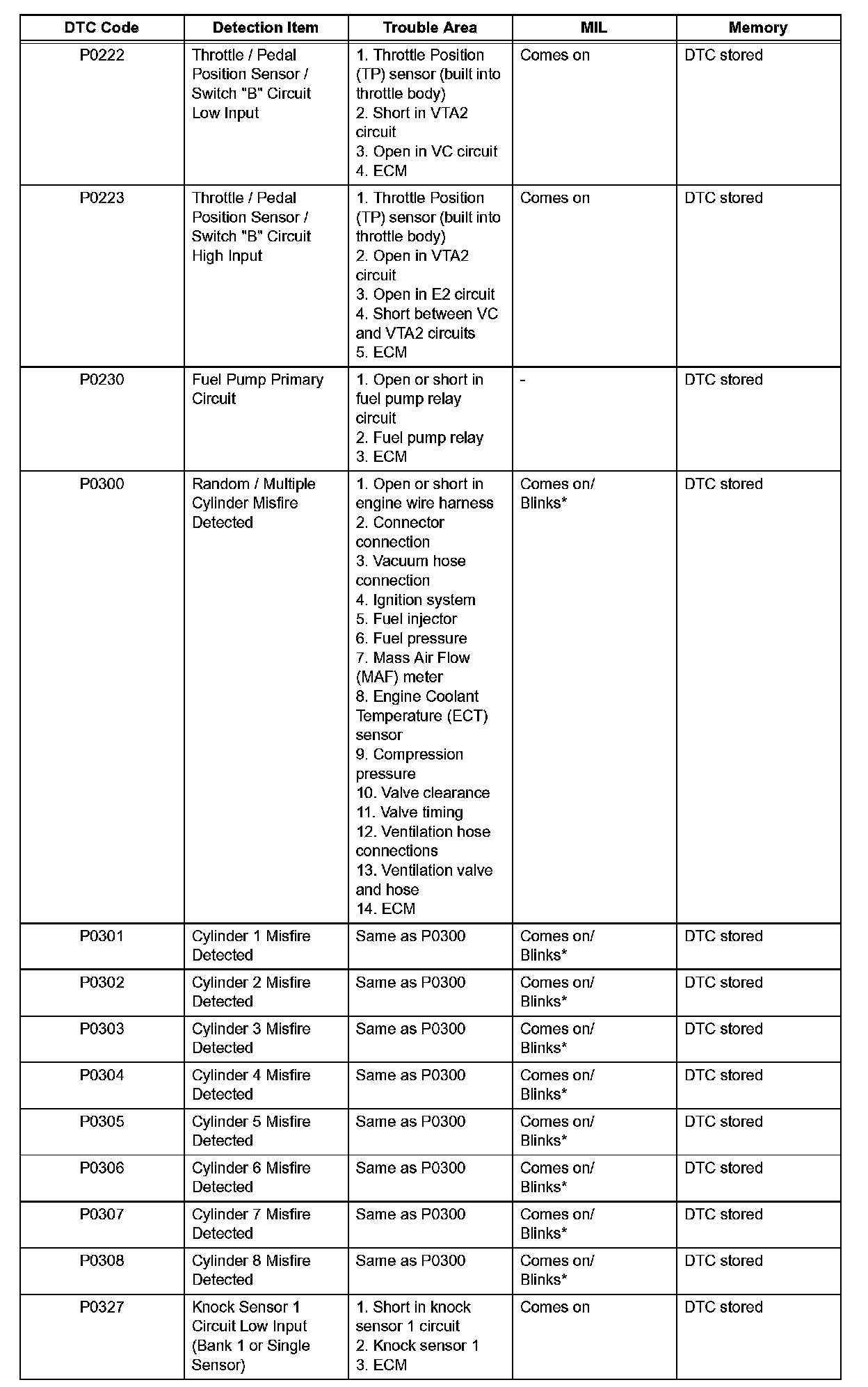

P0222-P0327:

P0328-P0353:

P0354-P0418:

P0420-P0441:

P0450-P0456:

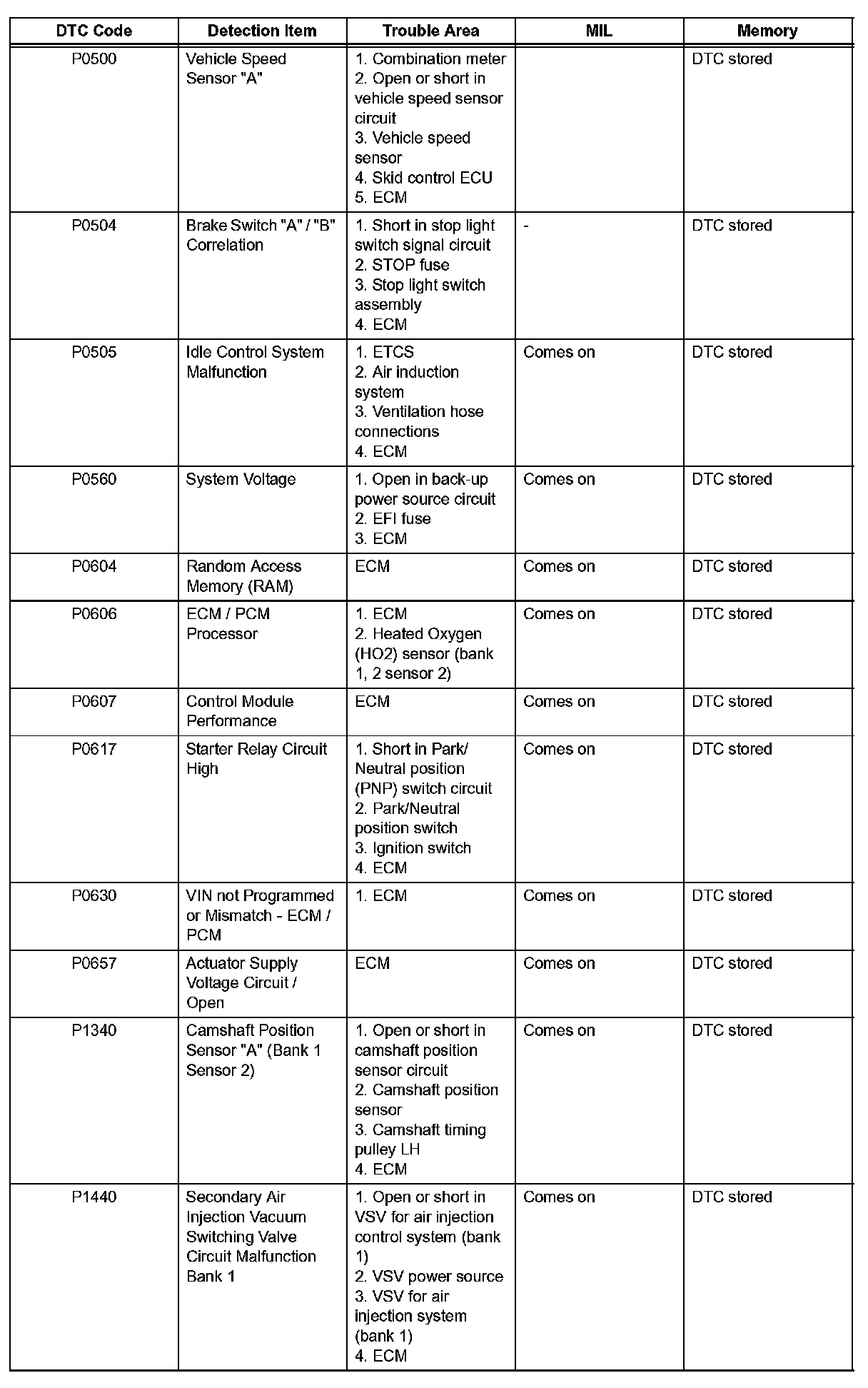

P0500-P1440:

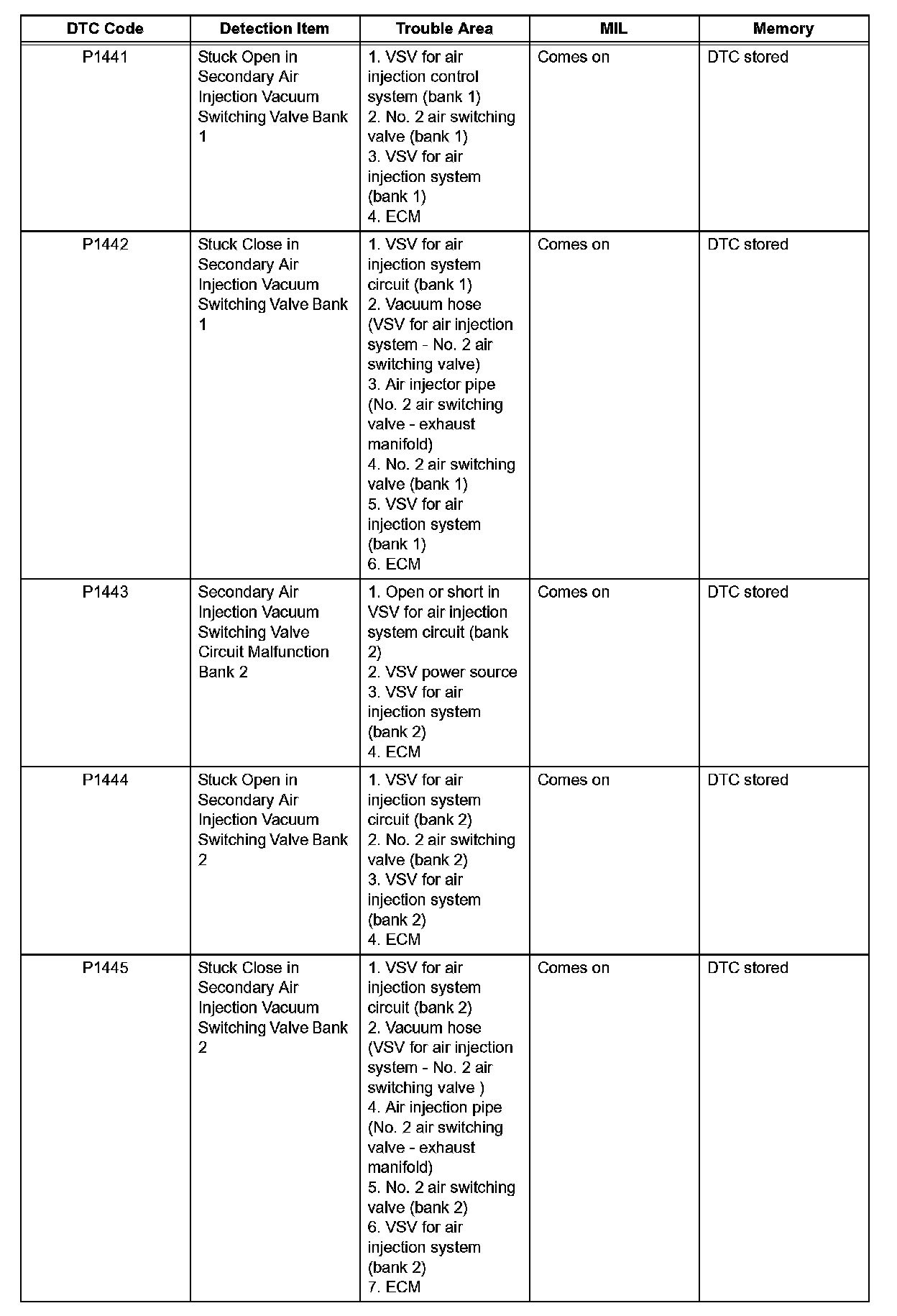

P1441-P1445:

P1613-P2125:

P2127-P2198:

P2237-P2256:

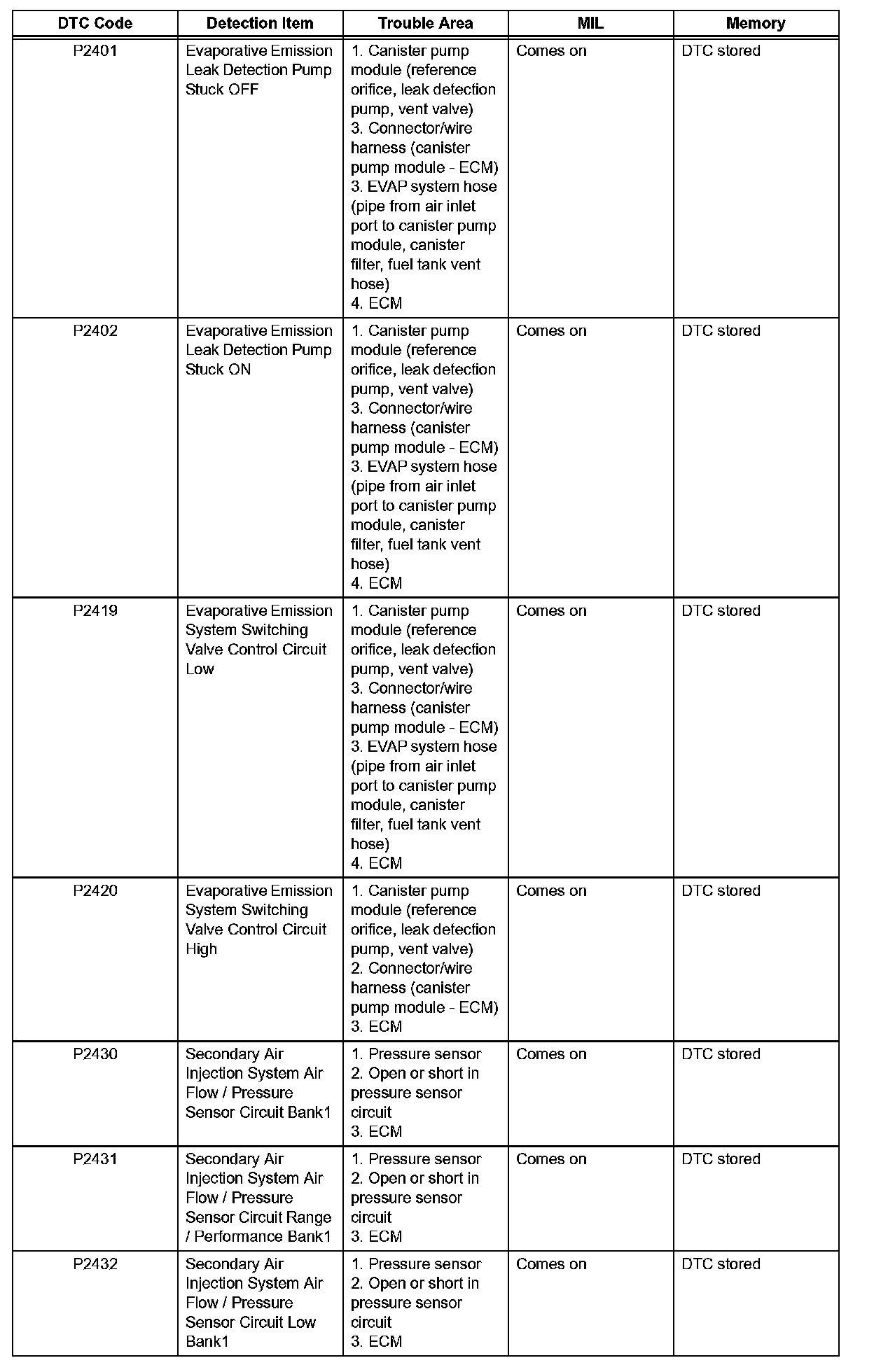

P2401-P2432:

P2433-P2610:

P2A00-P2A03:

HINT:
- The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values. If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table.
- *: MIL flashes when a catalyst damaged misfire is detected.
