Headlamp: Testing and Inspection

LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

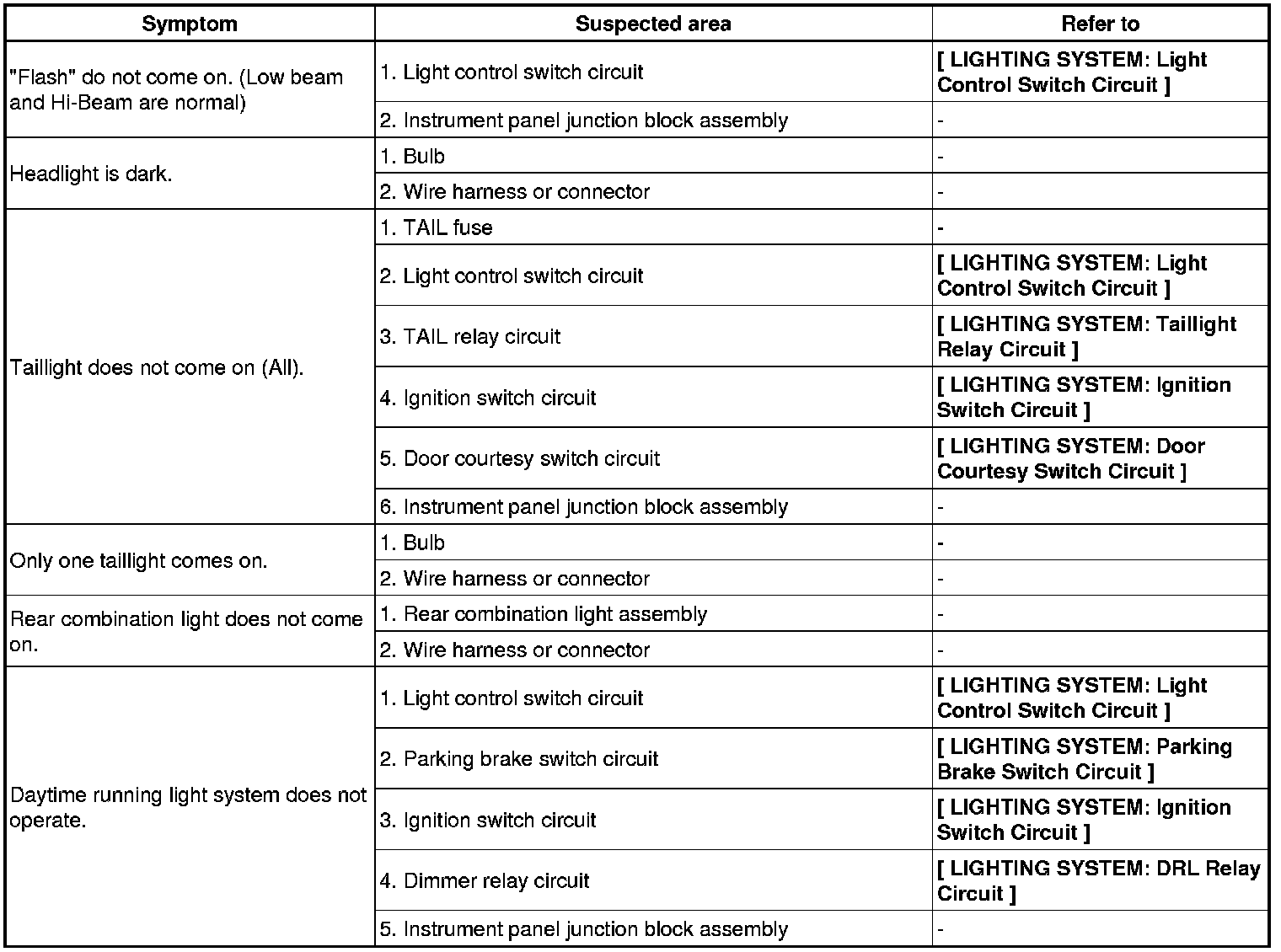

HEADLIGHT AND TAILLIGHT SYSTEM

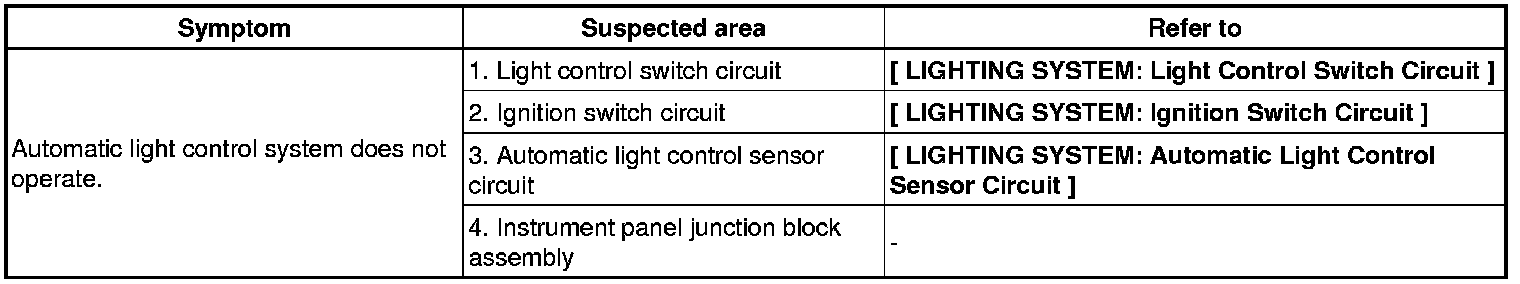

AUTOMATIC LIGHT CONTROL SYSTEM

LIGHT AUTO TURN OFF SYSTEM

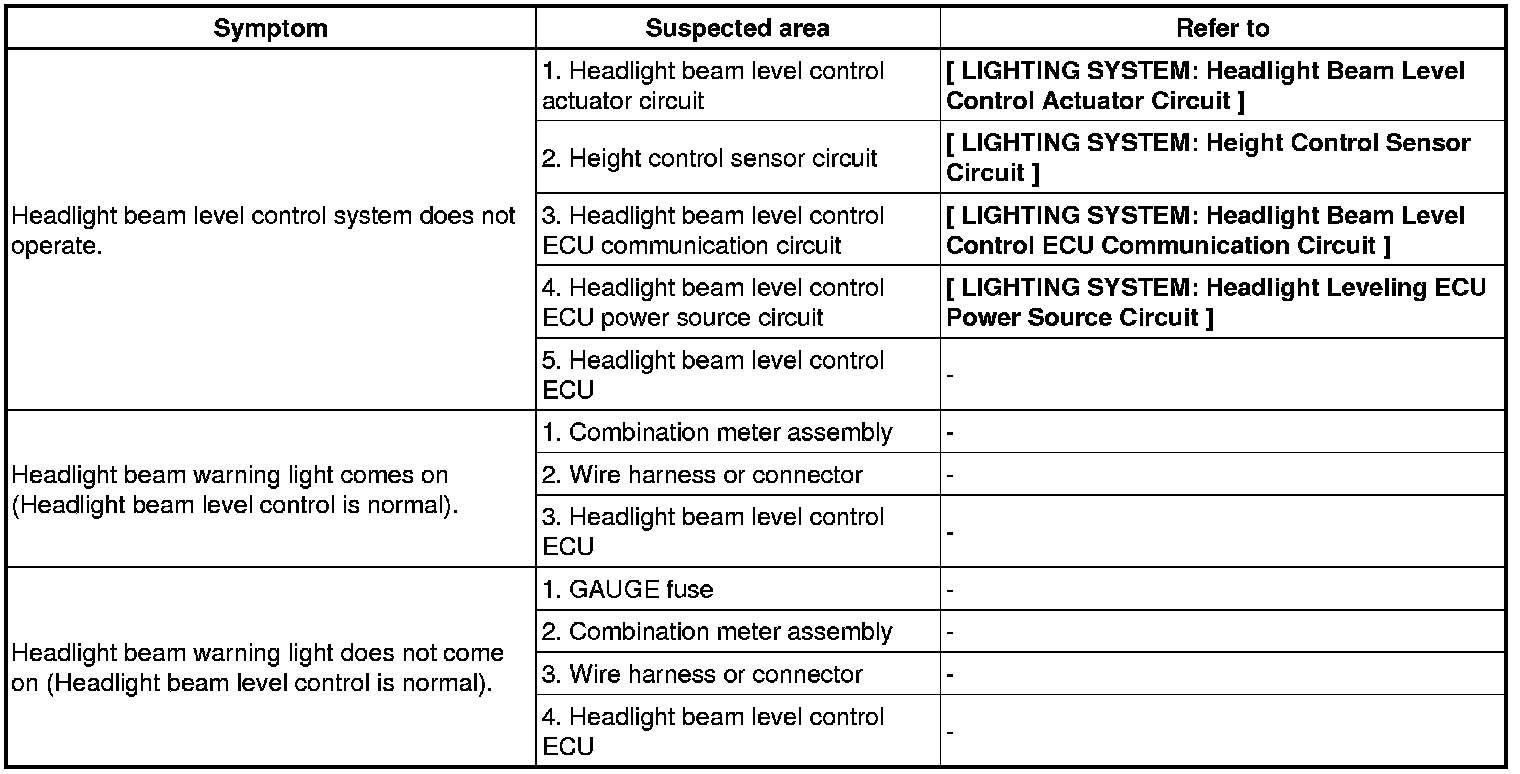

HEADLIGHT BEAM LEVEL CONTROL SYSTEM
