Kinetic Dynamic Suspension System
SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

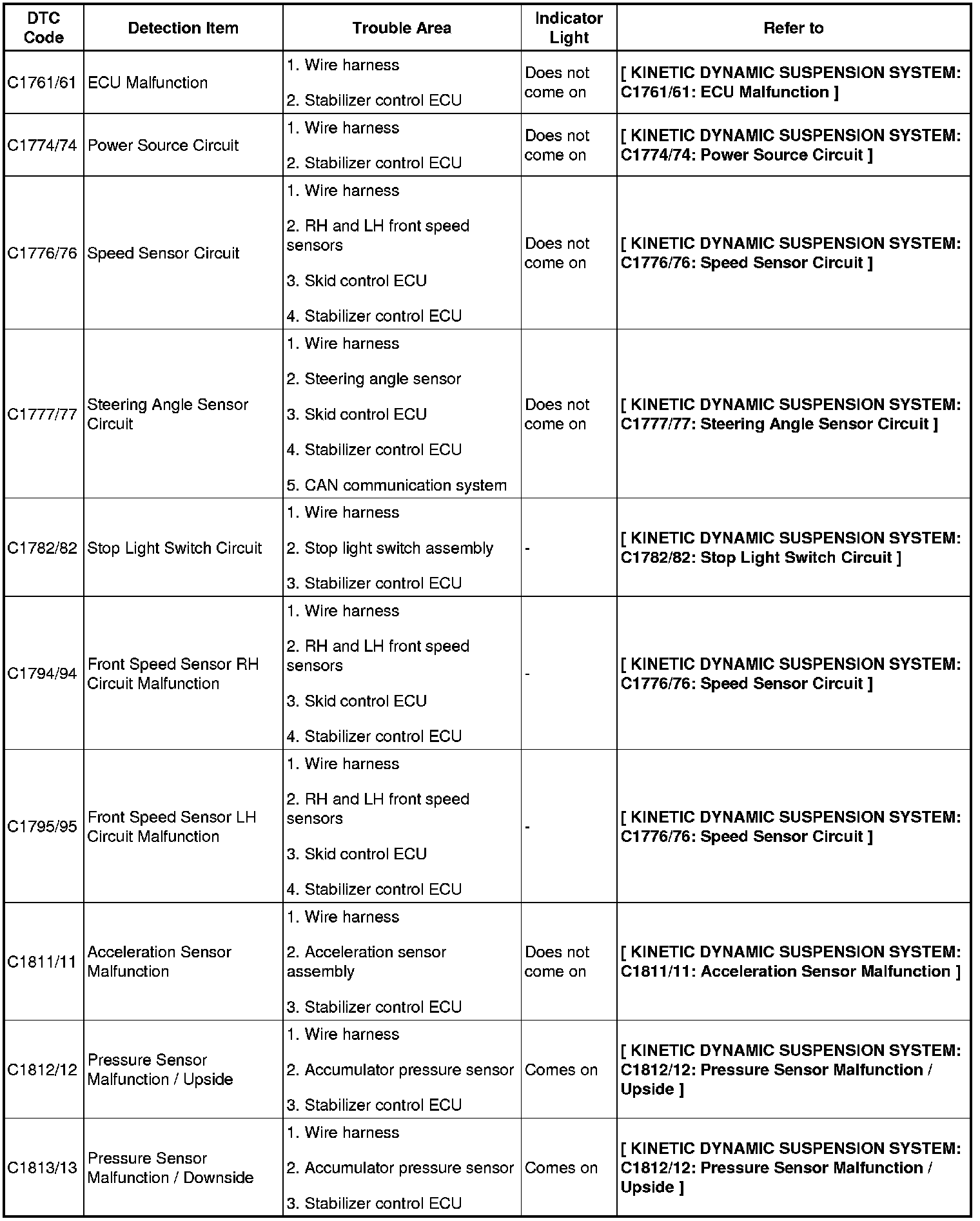

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- Inspect the fuse before inspecting the suspected areas as shown in the chart below.
- If no abnormality is found when the parts are inspected, inspect the stabilizer control ECU.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "See page" in the table below.
KINETIC DYNAMIC SUSPENSION SYSTEM
