P1572

P1572 ASCD BRAKE SWITCH

Description
When the brake pedal is depressed, ASCD brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to "System Diagram" for the ASCD function.

DTC Logic

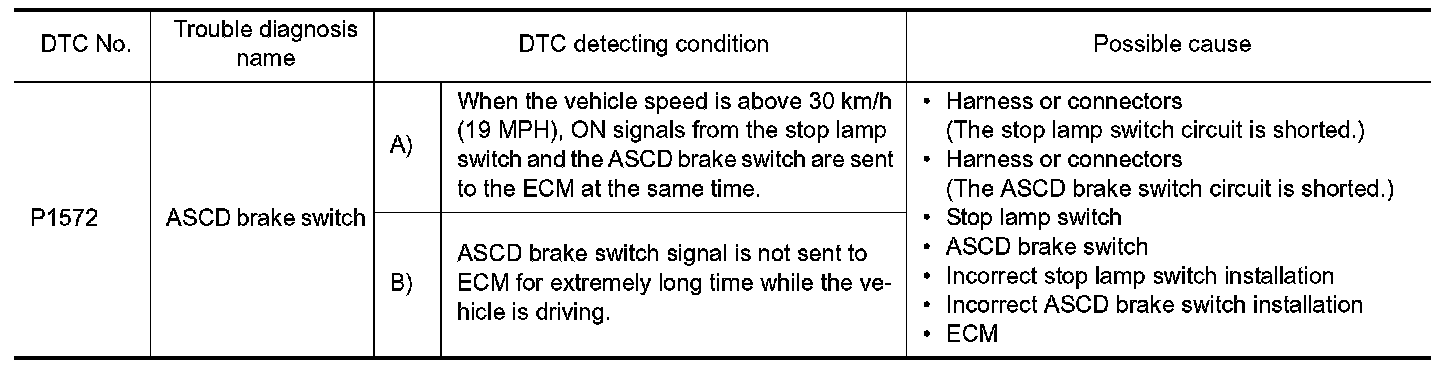

DTC Detection Logic

NOTE:
- If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to EC-1331, "DTC Logic". P0605
- This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed. 1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two consecutive trips, DTC is not stored in ECM memory.

Step 1-2:

Step 2 (Continued)-3:

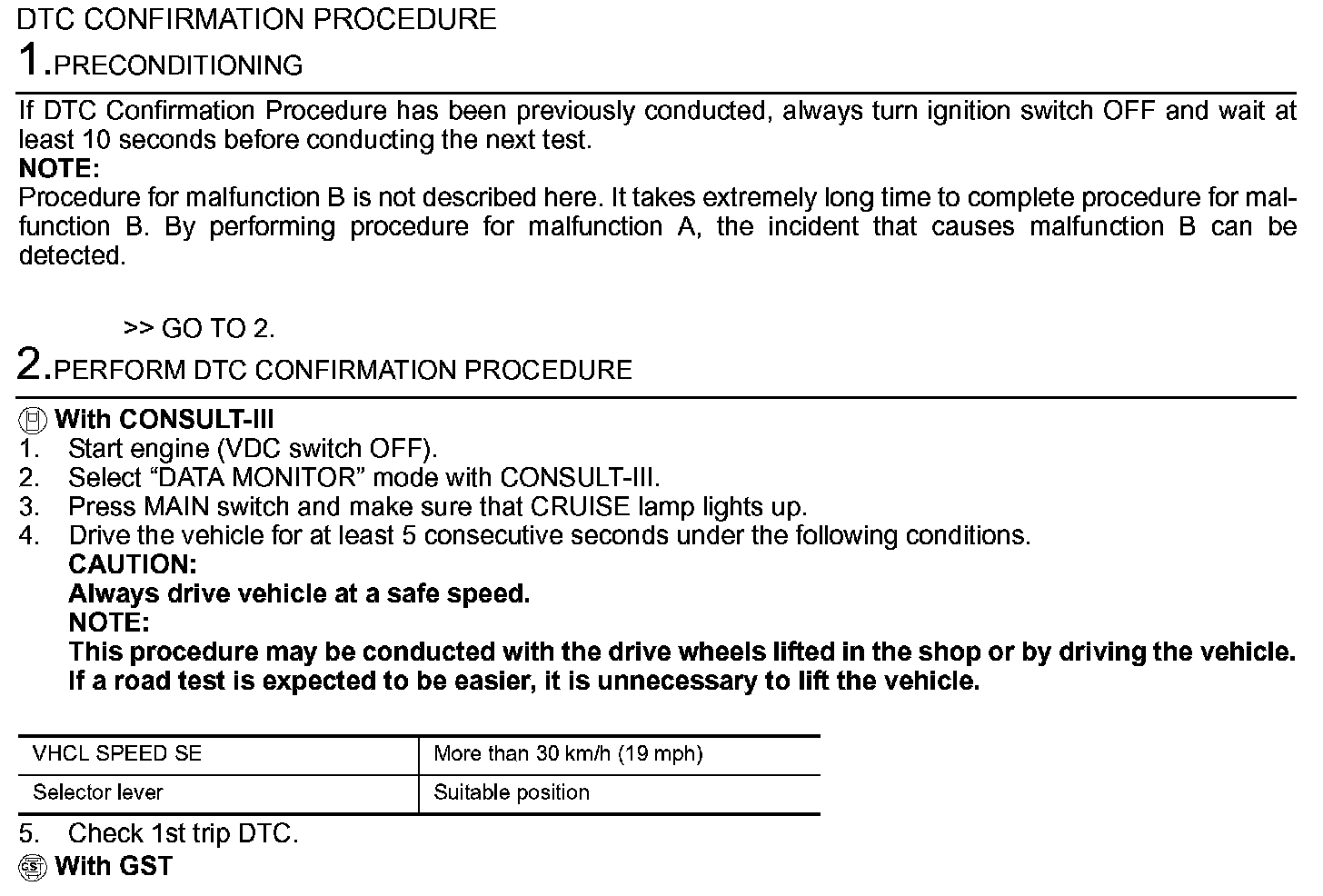

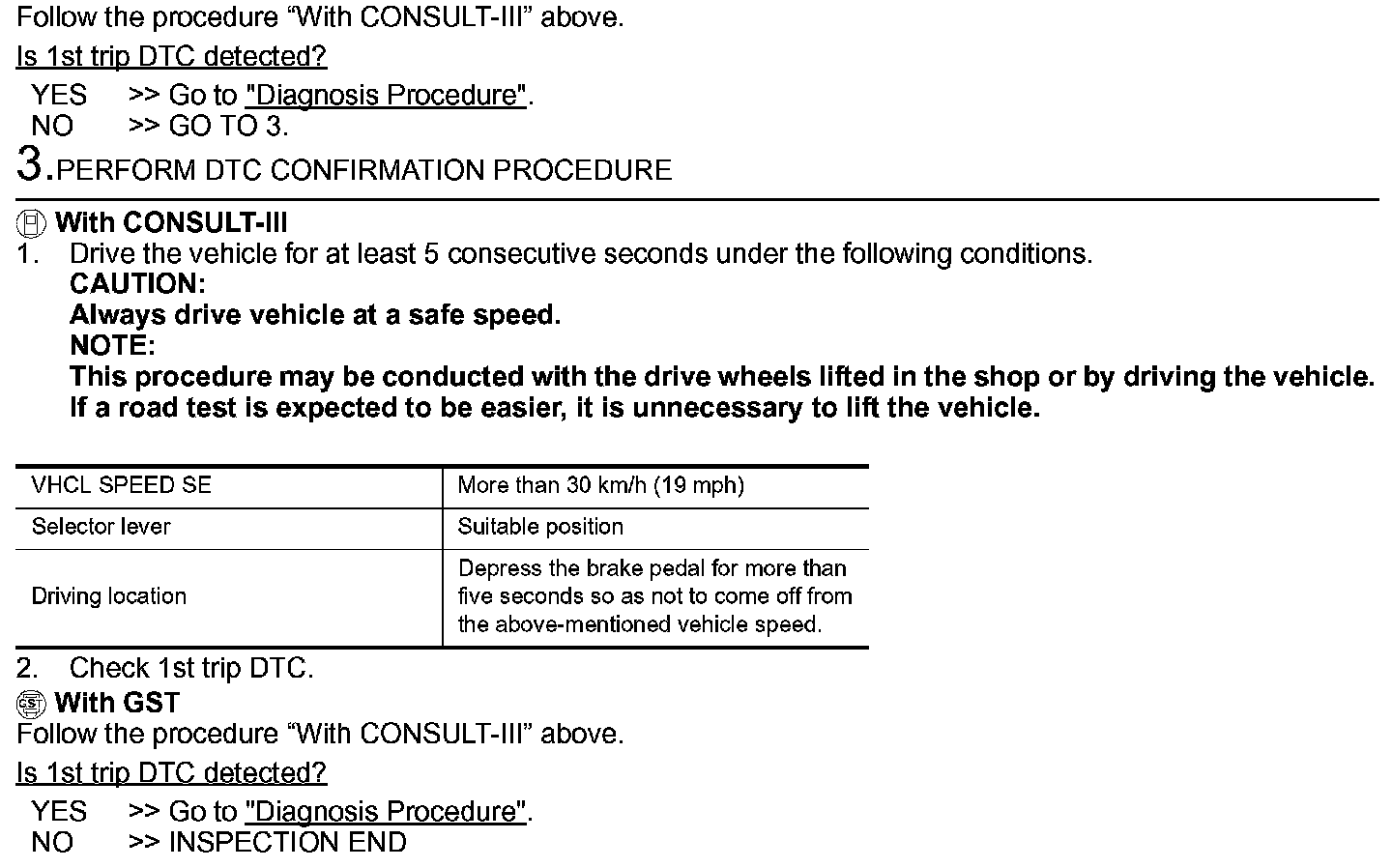

DTC Confirmation Procedure

Step 1-2:

Step 2 (Continued)-6:

Step 6 (Continued)-11:

Step 11 (Continued)-17:

Step 18-21:

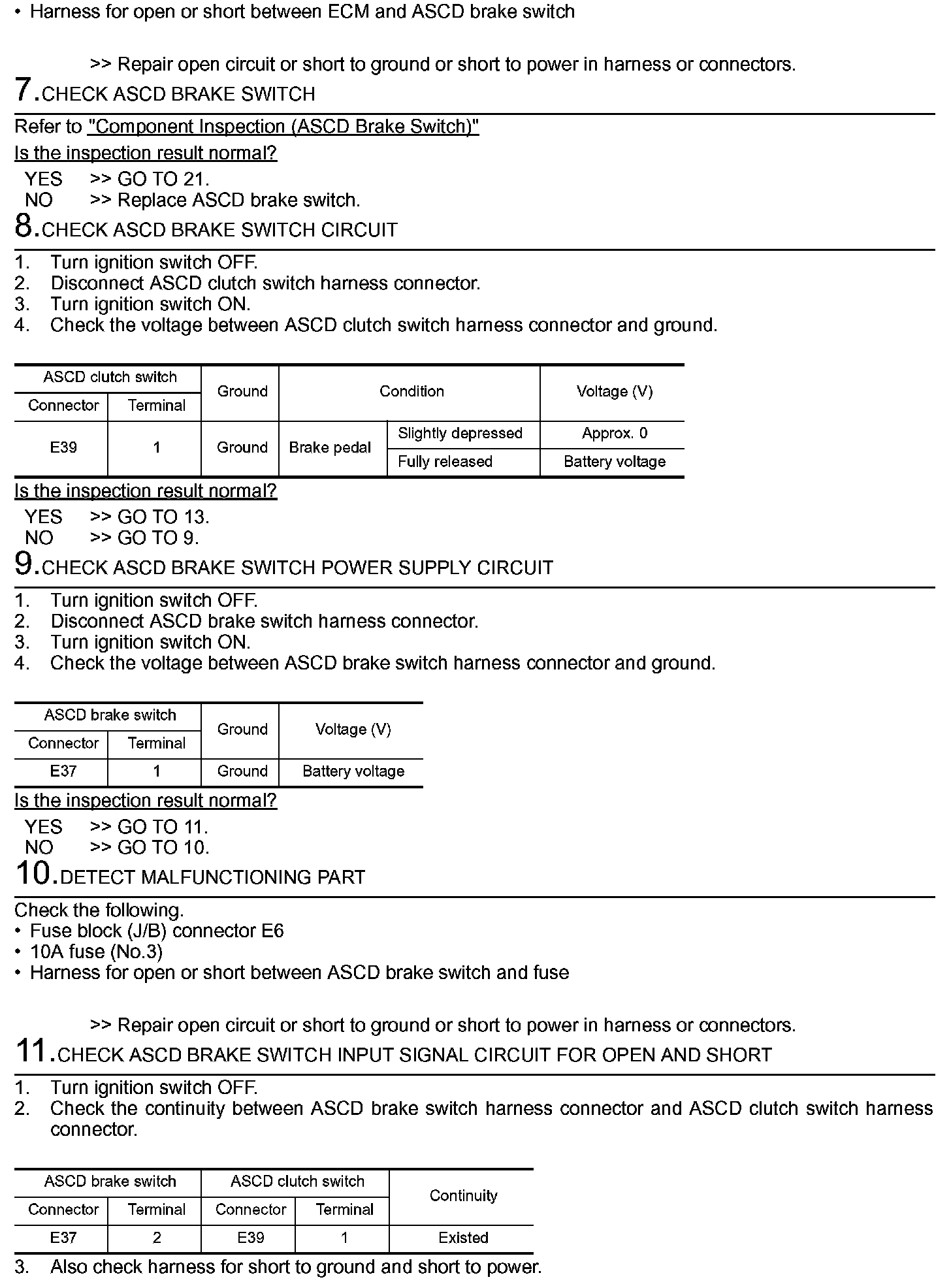

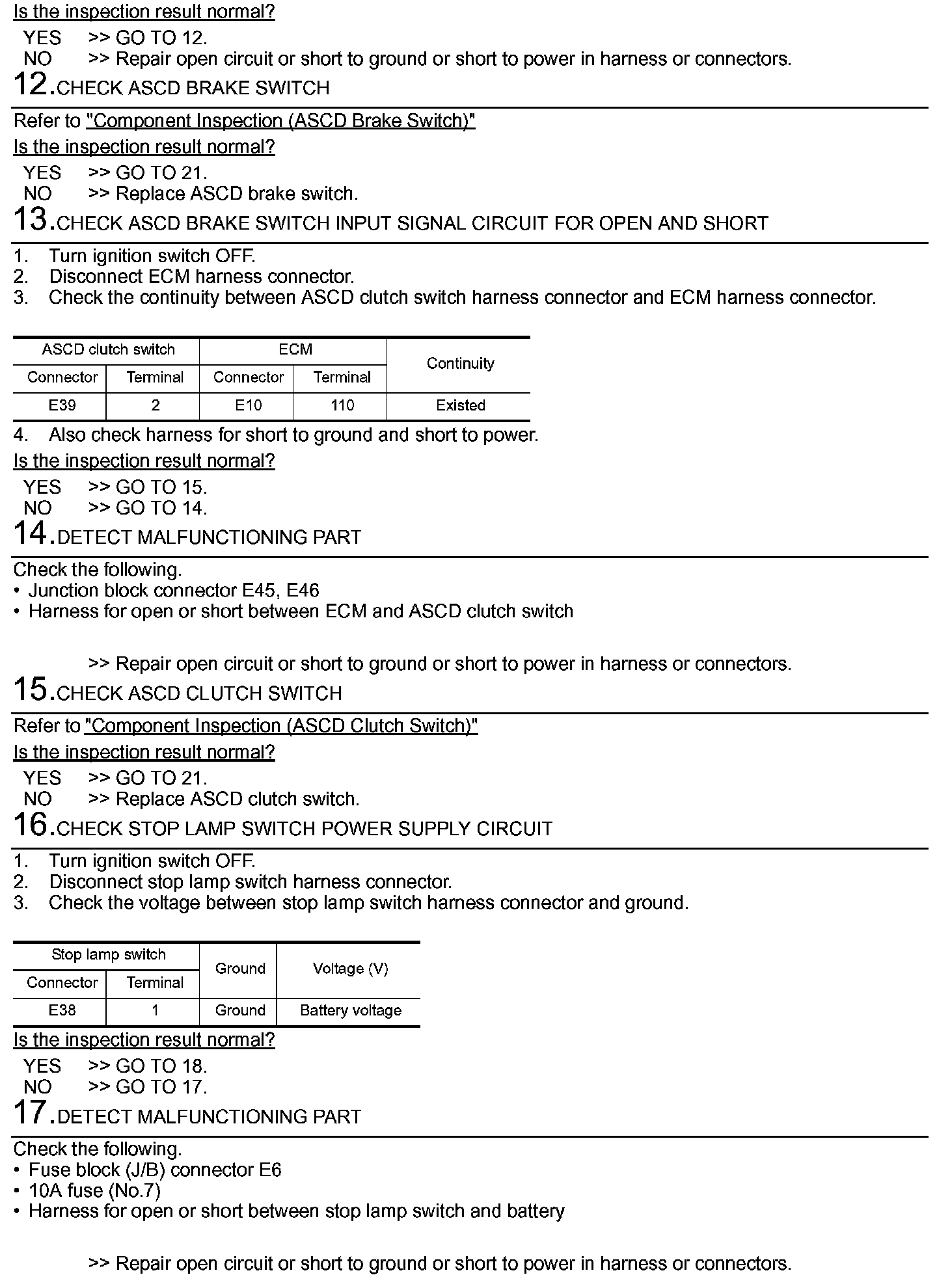

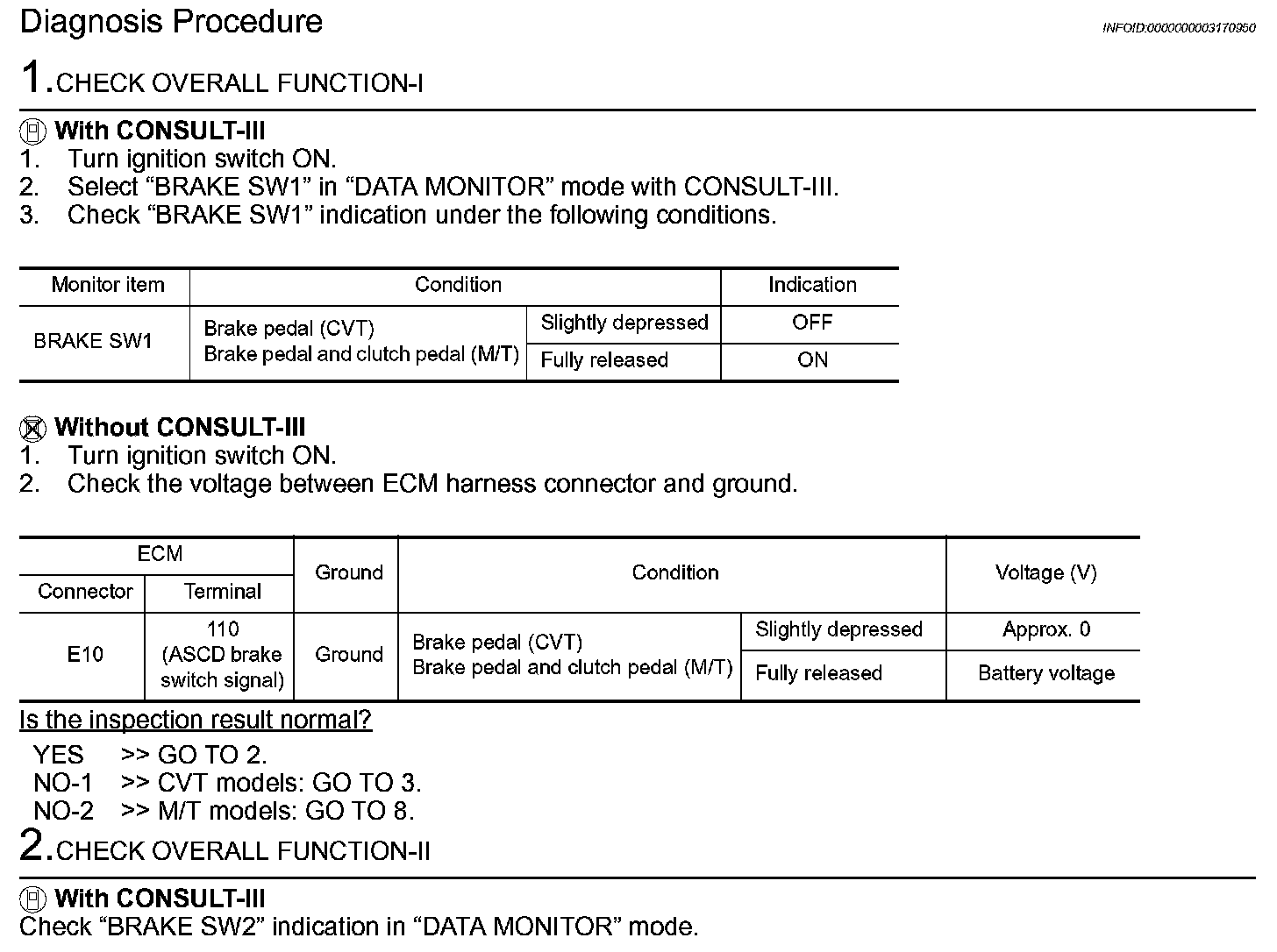

Diagnostic Procedure

Step 1-2:

Step 2 (Continued):

Component Inspection (ASCD Brake Switch)

Step 1-2:

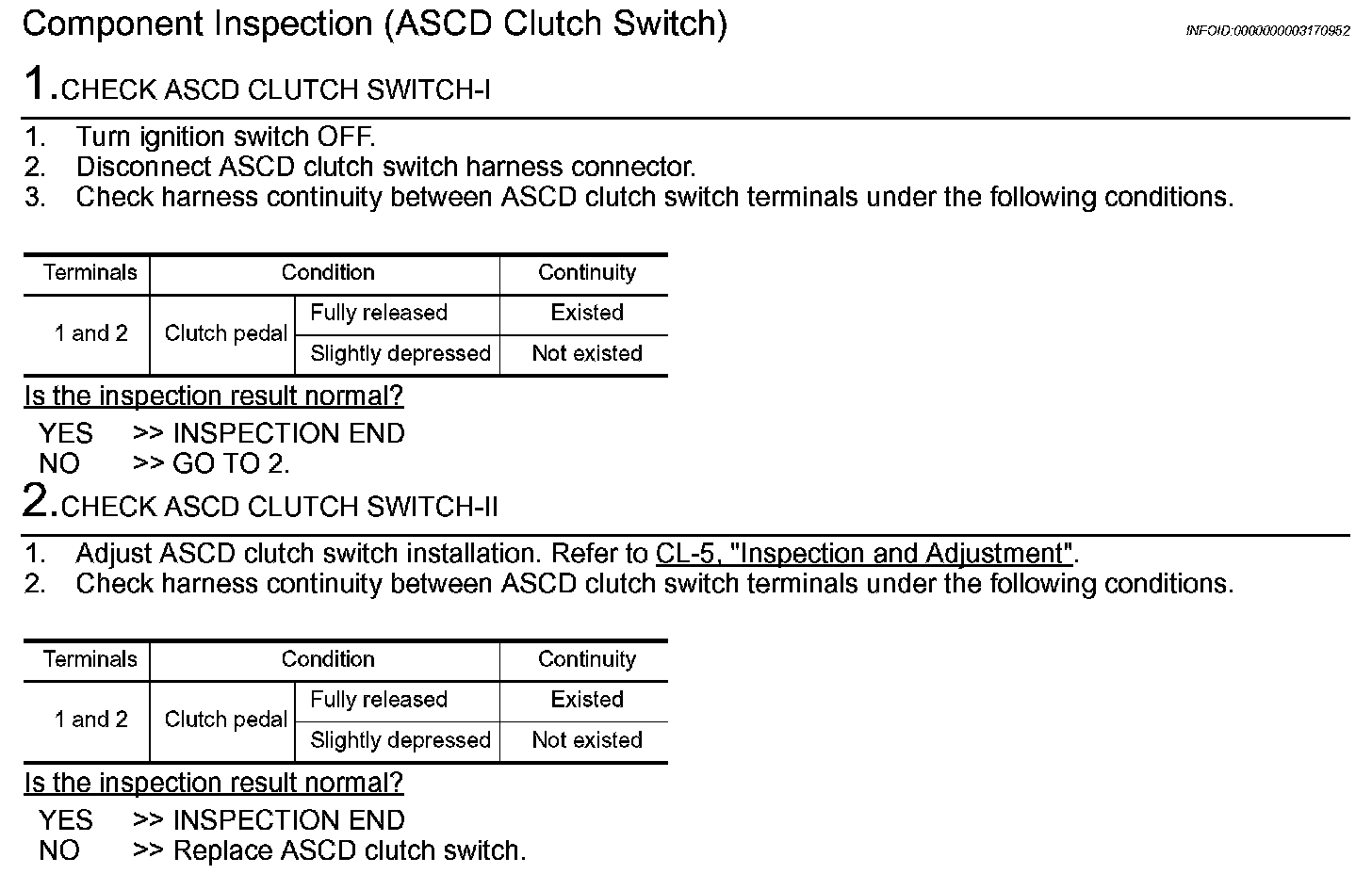

Component Inspection (ASCD Clutch Switch)

Step 1-2:

Component Inspection (Stop Lamp Switch)
