Fault Overview - Tiptronic
Fault Overview
Fault overview of Porsche fault codes
The text shown in brackets is not displayed when reading out faults using the 9588 Porsche System Tester II. These fault codes are standardized worldwide in the OBD II/EOBD and are read out using Scan Tool (the standard read-out tester throughout the world). In the 9588 Porsche System Tester II, this function is supported under 'Special functions', menu item 'CARB (ISO)'.

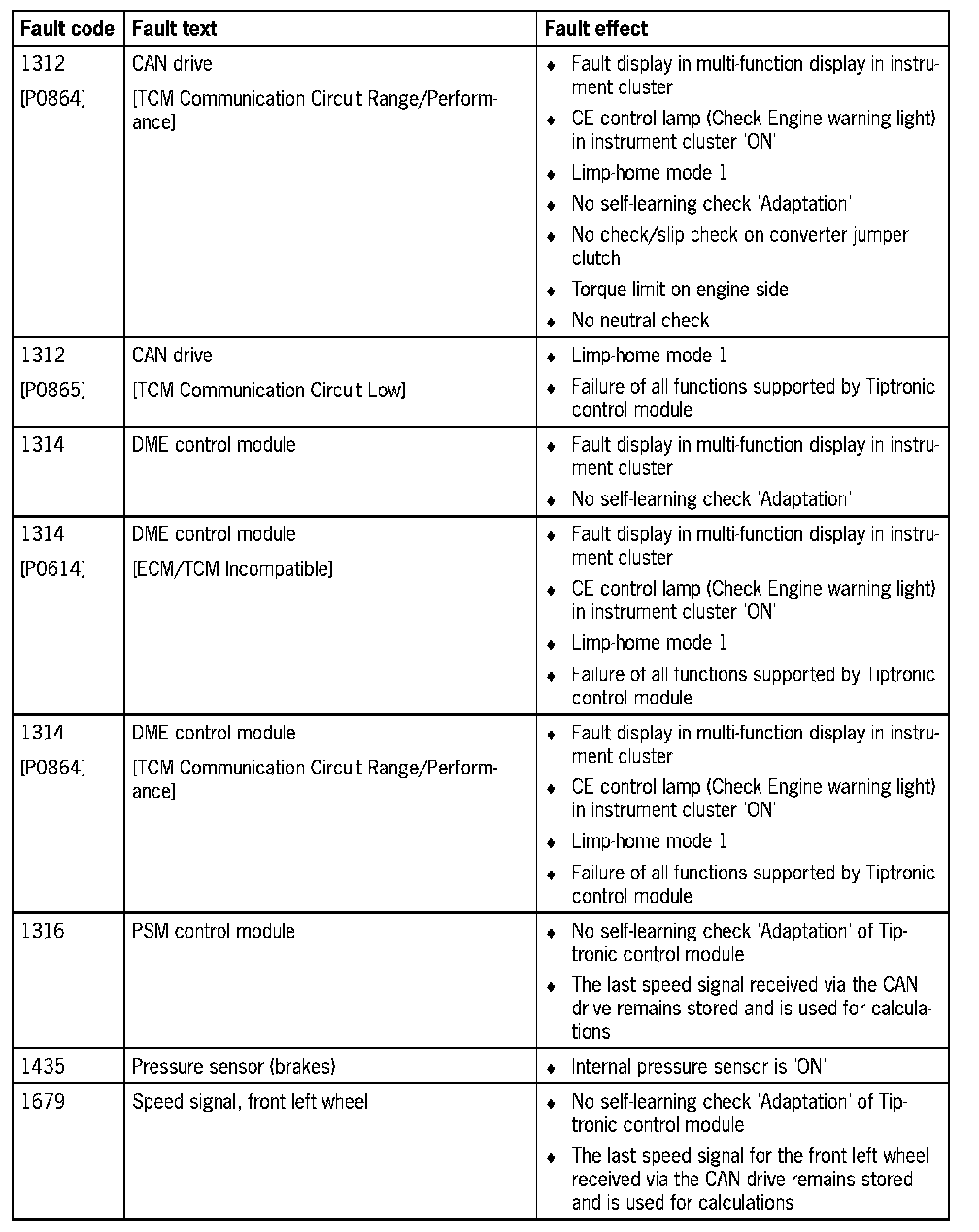

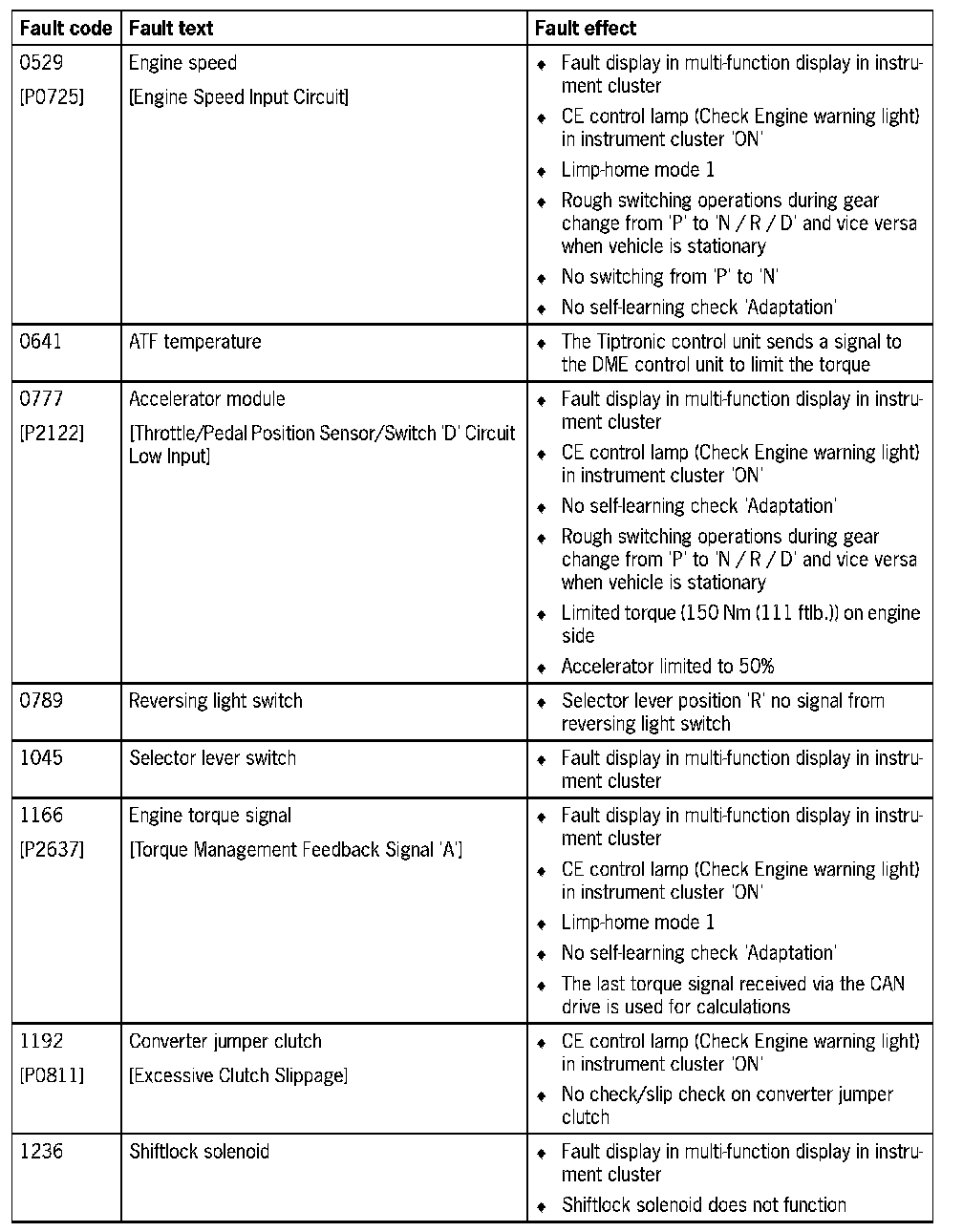

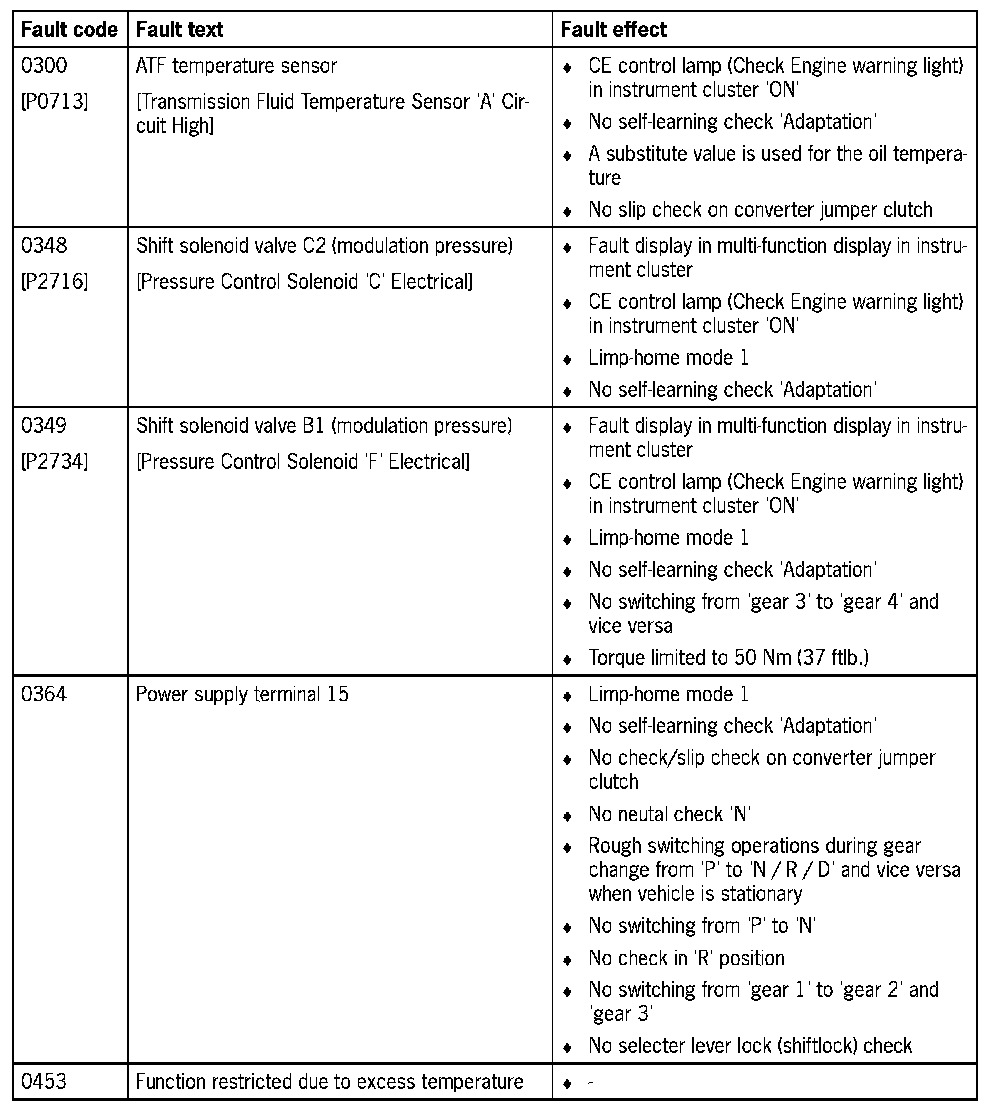

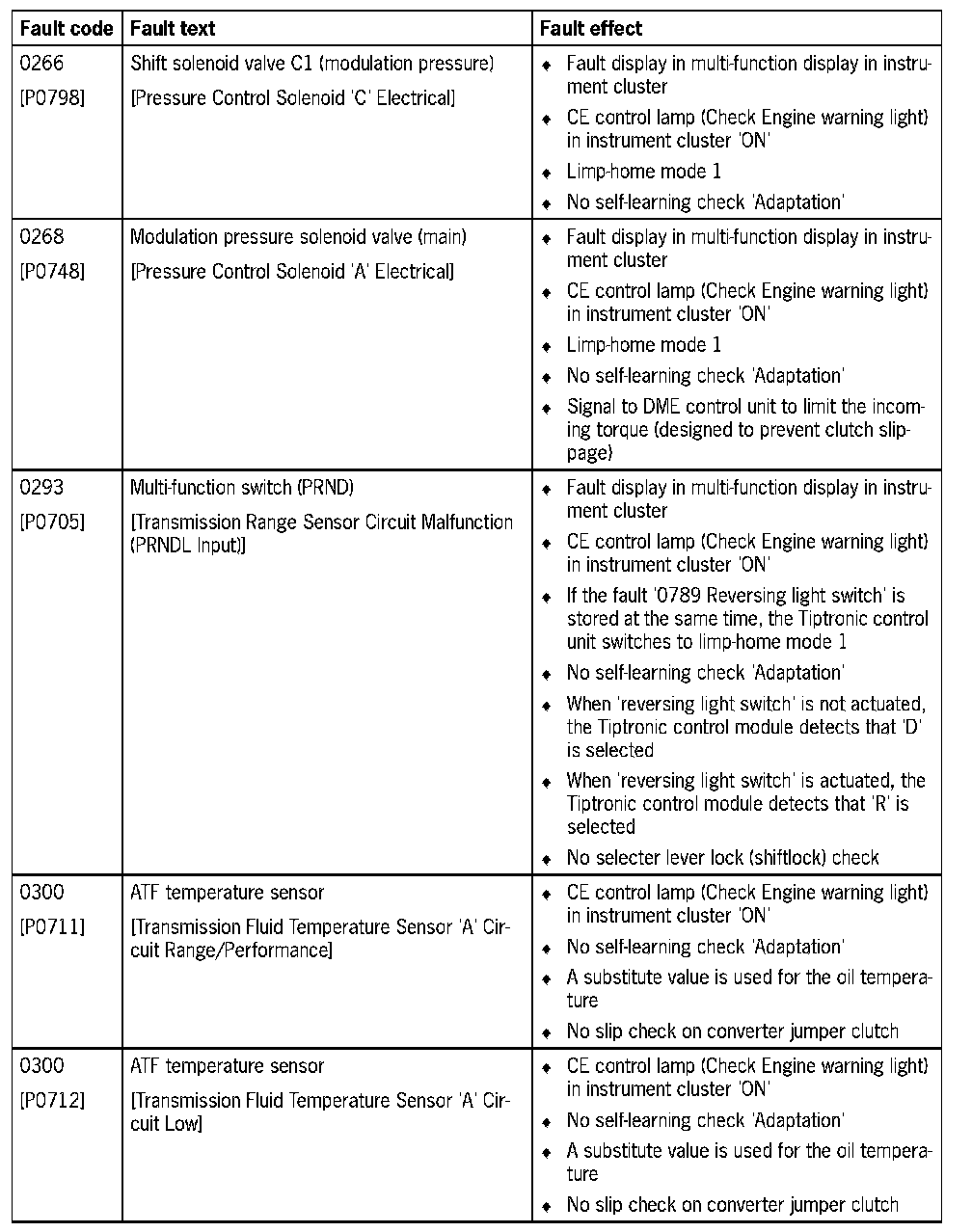

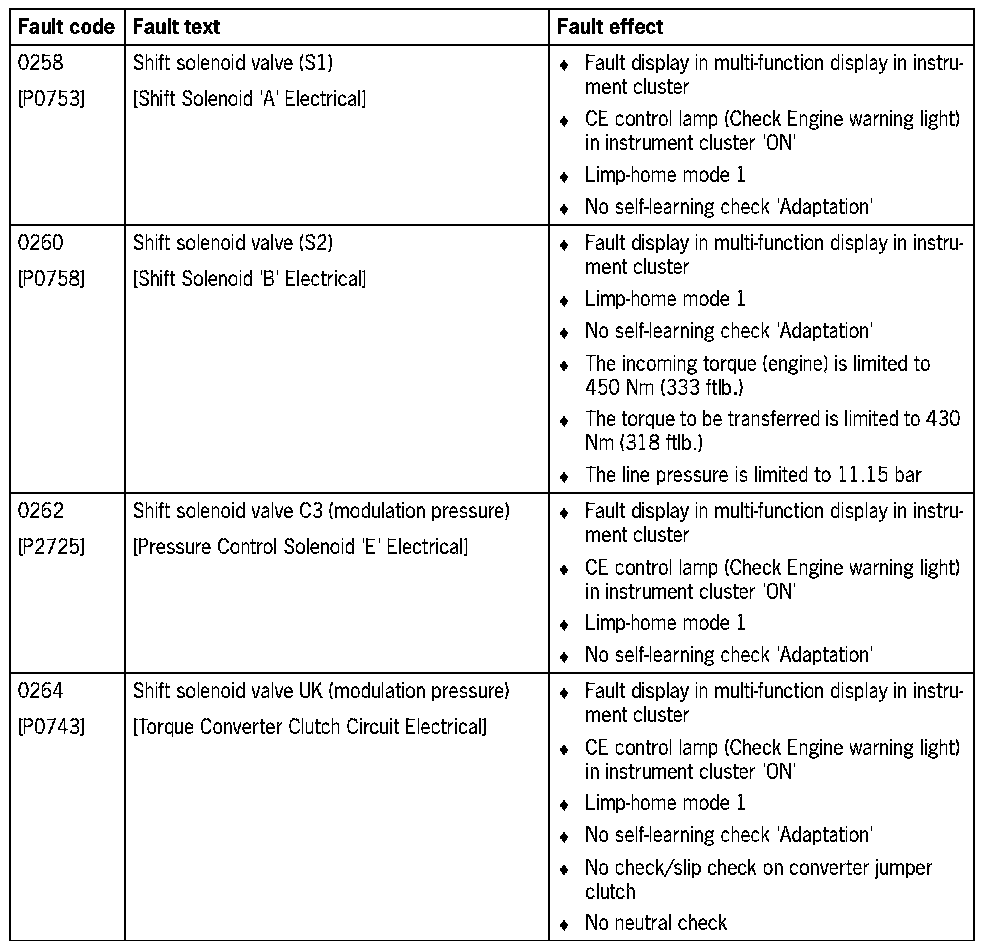

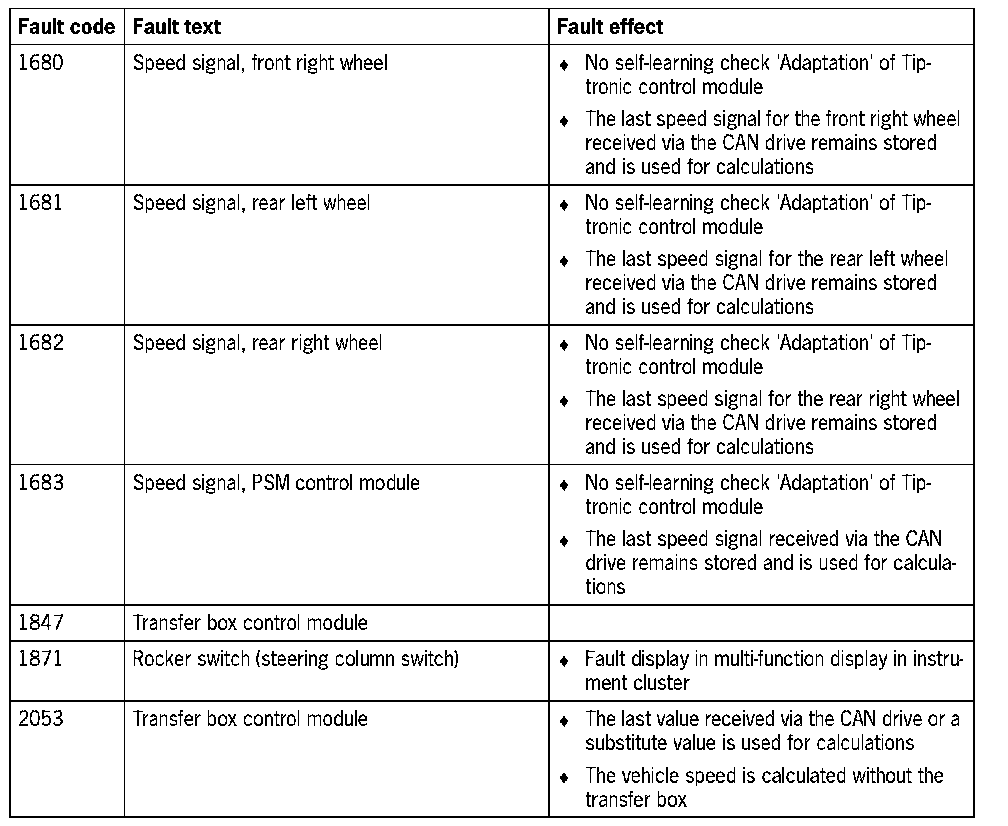

Fault Overview Part 1:
Fault Overview Part 2:
Fault Overview Part 3:
Fault Overview Part 4:
Fault Overview Part 5:
Fault Overview Part 6:

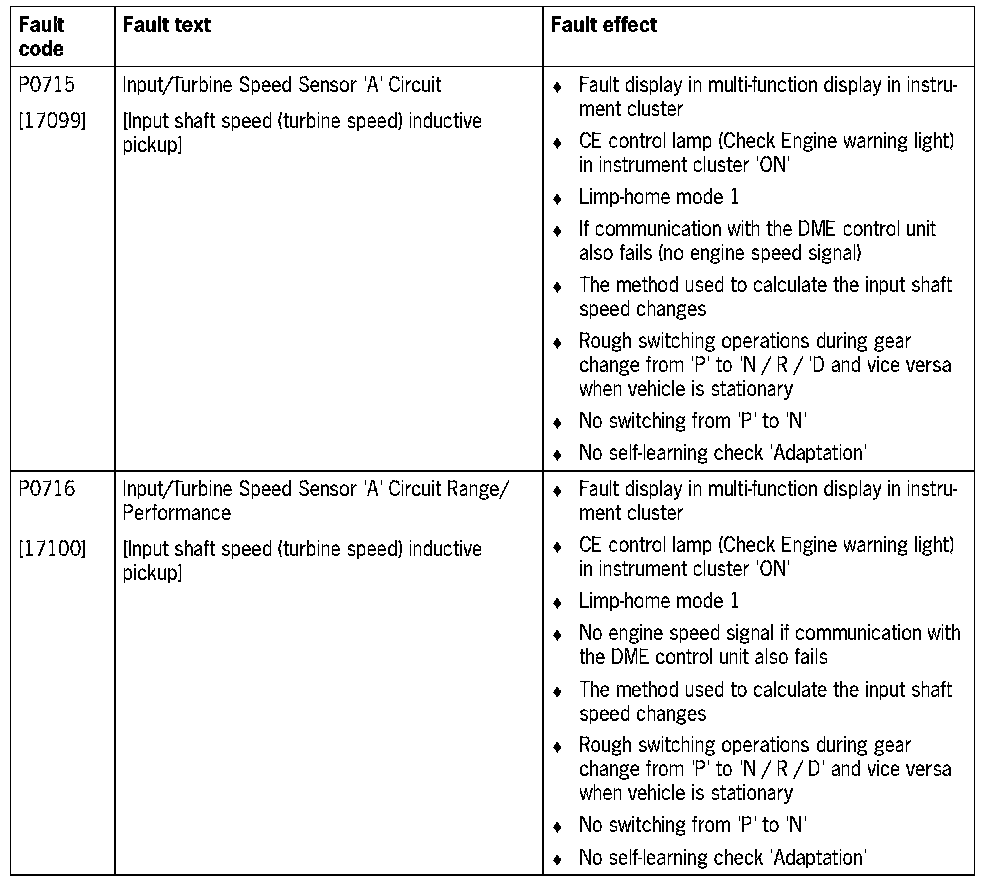

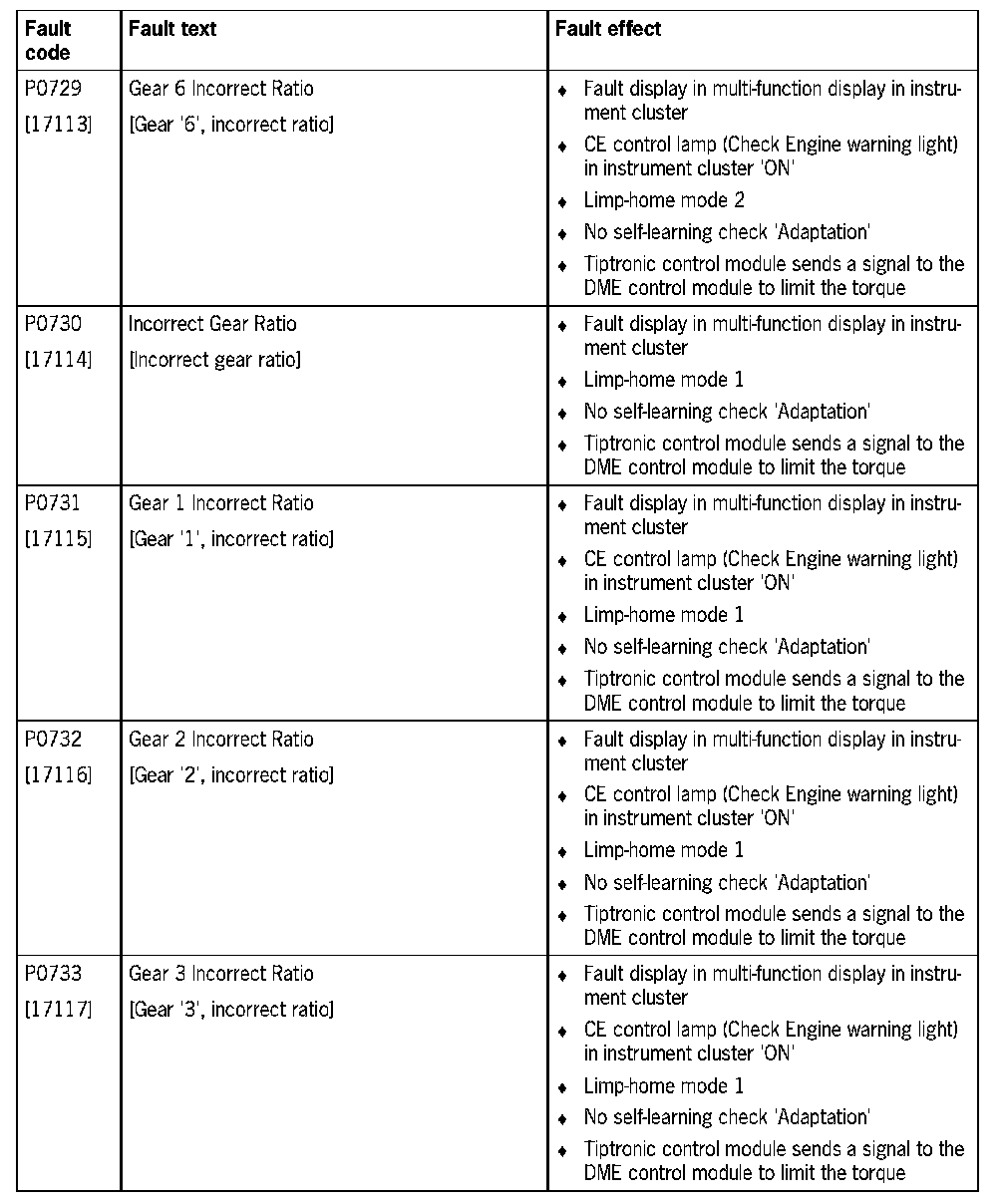

Fault overview of P codes

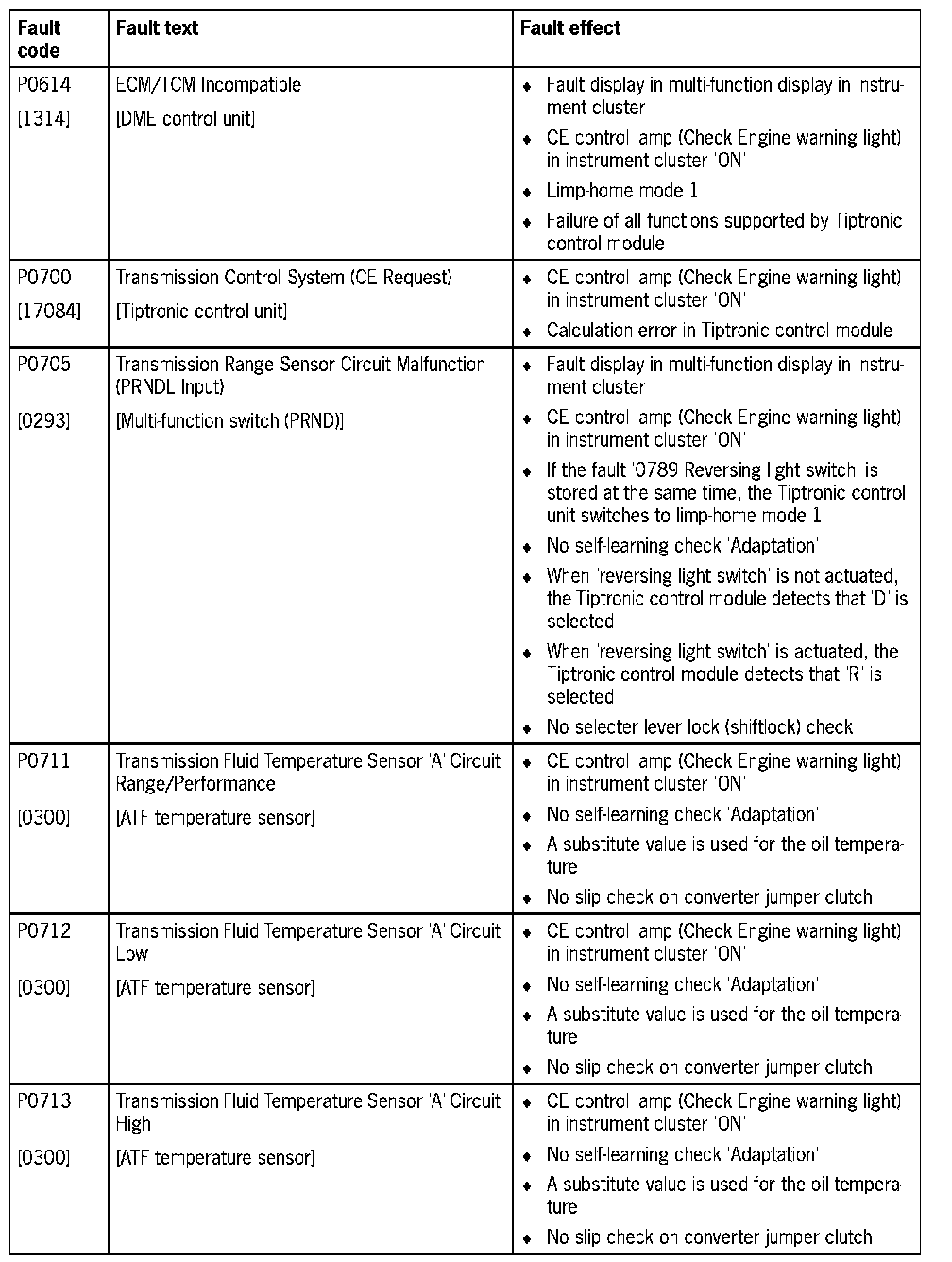

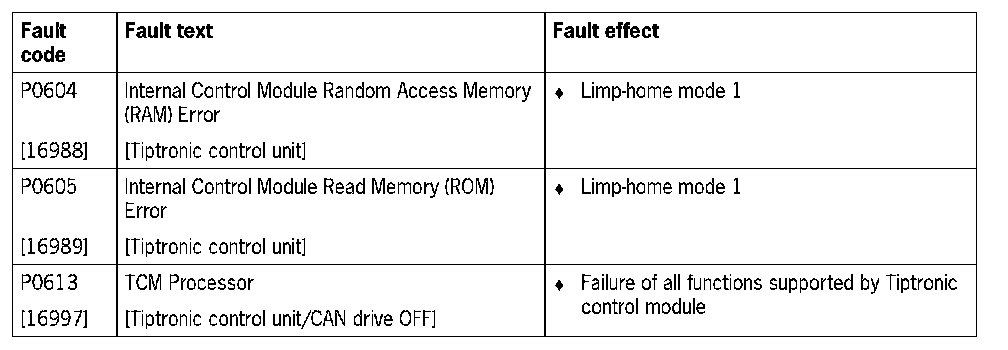

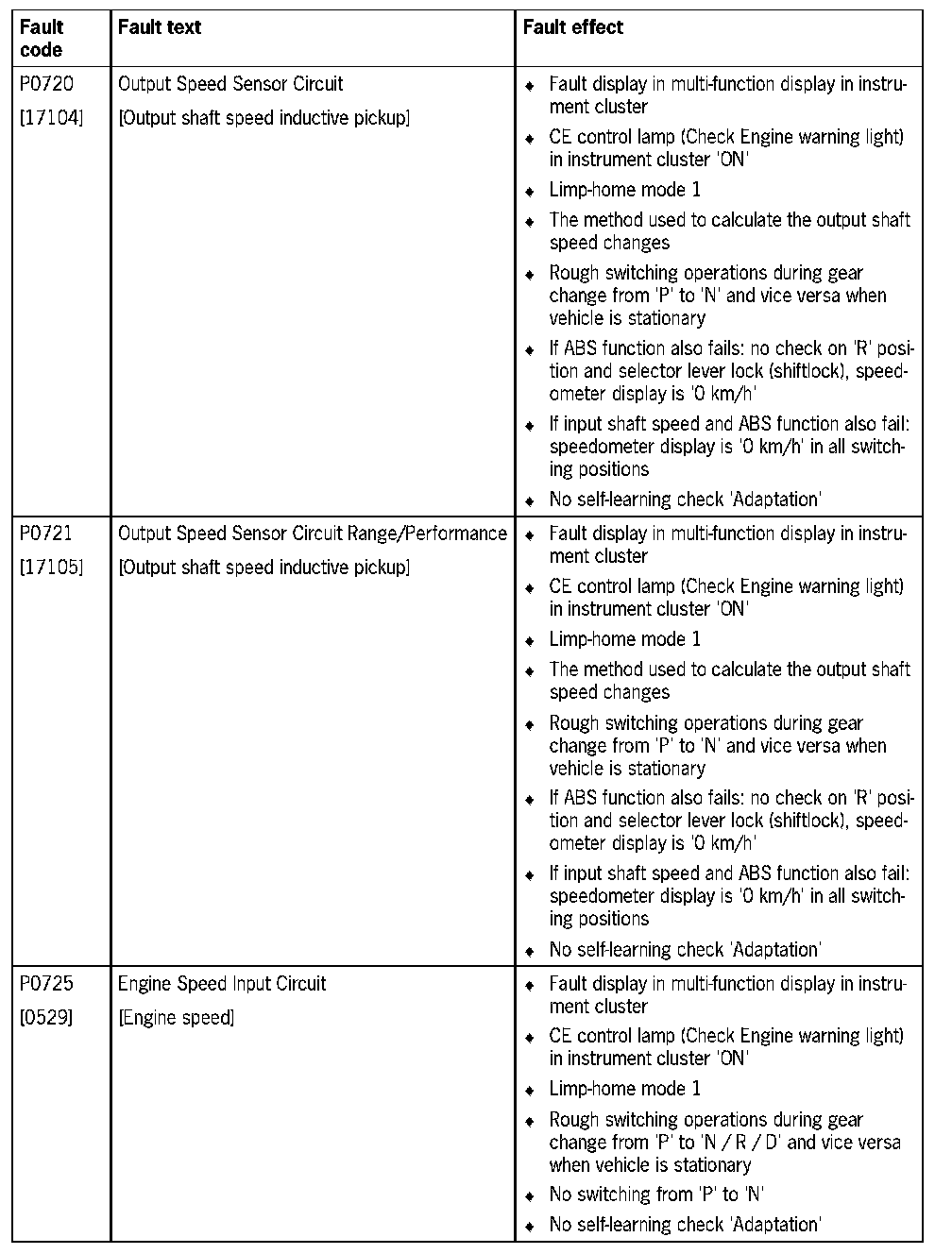

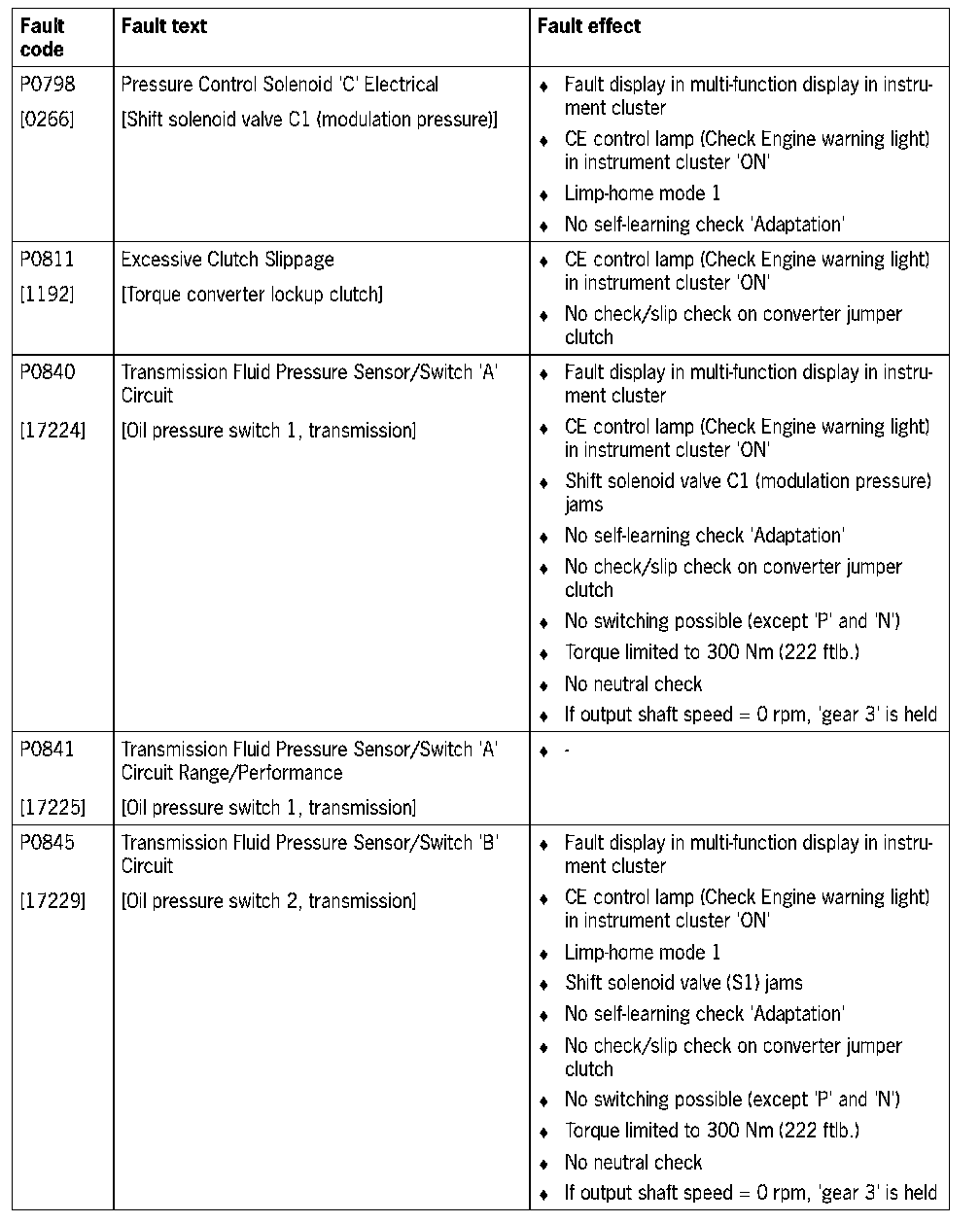

Table with and without OBD II/EOBD 'P-Code', in brackets the associated Porsche fault codes, which are displayed in the 9588 Porsche System Tester II under Tiptronic control unit:
