270519 Removing and installing battery sensor

WM 270519 Removing and installing battery sensor

Technical values





Preliminary work

Preliminary work for battery sensor

1. Open the luggage compartment floor.
2. Remove tool kit tray.
3. Partly remove left side trim panel for rear luggage compartment. -> 700319 Removing and installing side trim panel for rear luggage compartment Service and Repair
4. Remove left storage tray floor. -> 700619 Removing and installing trim panel for luggage compartment (luggage compartment cover) - section on "Removing" .

Removing battery sensor

1. Switch off ignition and remove the remote control from the ignition lock.
2. Disconnect the negative cable -1- on the battery.

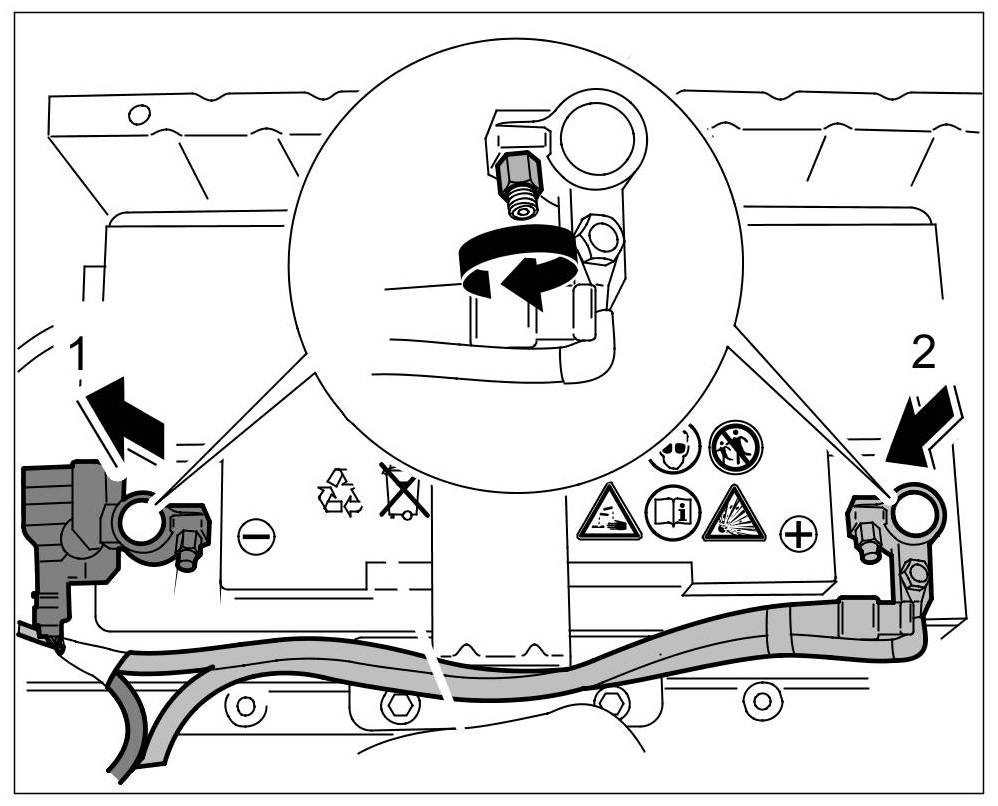

Removing terminal clamps

3. Release and unplug electric connector on the battery sensor.





Disconnecting electric plug connection

4. Screw off fastening nut -2- on the body and remove the ground strap and battery sensor.





Unscrewing ground strap

Installing battery sensor

1. Connect ground strap to the ground point and secure with the fastening nut -2-. => Tightening torque: 9.7 Nm (7.5 ftlb.)





Fitting ground strap

2. Fit battery sensor -1- and terminal clamp on the battery and secure them. => Tightening torque: 6 Nm (4.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)





Attaching terminal clamps

3. Connect electric plug connection for battery sensor.

Subsequent work

Subsequent work for battery sensor

1. Install left storage tray floor. -> 700619 Removing and installing trim panel for luggage compartment (luggage compartment cover) - section on "Installing" .
2. Re-fit left side trim panel for rear luggage compartment. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "Installing" Service and Repair
3. Fit tool kit tray.
4. Close the luggage compartment floor.
