397719 Removing and installing transverse lock servo motor

WM 397719 Removing and installing transverse lock servo motor

Technical values





Removing transverse lock servo motor

WARNING

Hot fluid

- Danger of scalding

-> Avoid contact with hot fluid.
-> Wear personal protective gear.

Information

- Avoid minor oil leaks when removing the servo motor.





Overview of rear final drive with servo motor

1. Pull cable plug -1, 2- off the servo motor.





Electric plug on servo motor

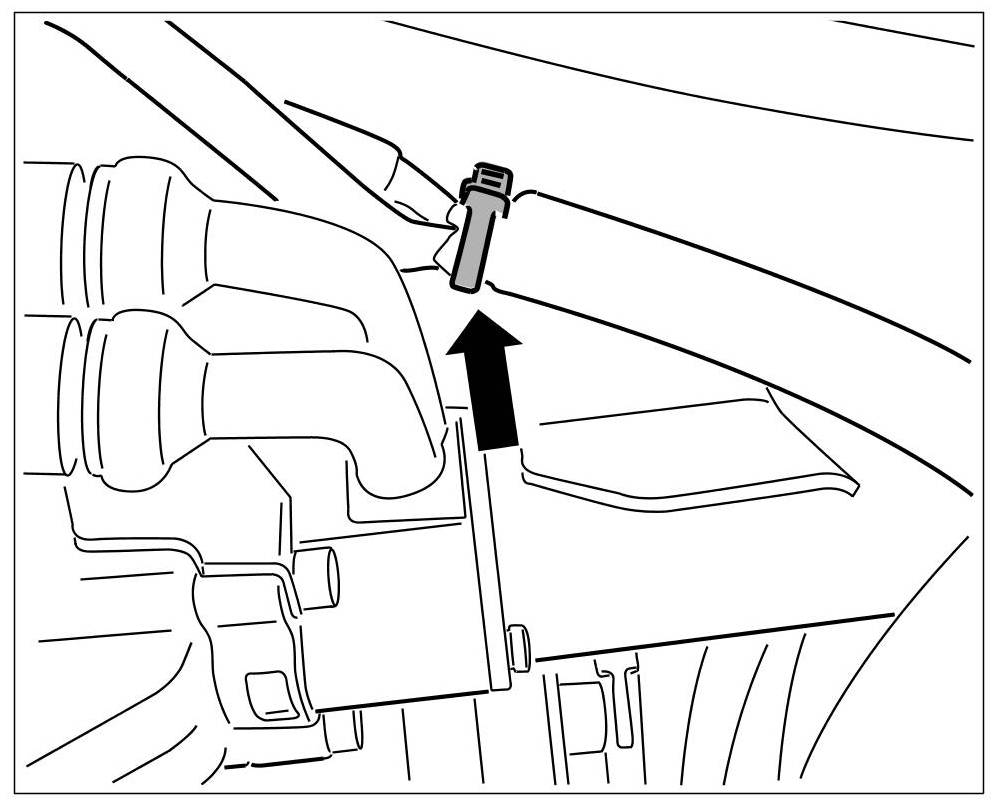

2. Pull off fastening element -arrow- for cable lead and place lead aside.





Cable lead fastening

3. Unscrew four fastening screws -arrows- on the servo motor.





Servo motor fastening

4. Place oil collection container underneath.
5. Remove servo motor.

Installing transverse lock servo motor

1. Replace sealing ring -arrow- on servo motor.





Sealing ring on servo motor

2. Install servo motor.
3. Tighten four screws -arrows- on the servo motor to => Tightening torque: 10 Nm (7.5 ftlb.).





Servo motor fastening

4. Install fastening element -arrow- for cable lead.





Cable lead fastening

5. Connect cable plug -1, 2- to servo motor.





Electric plug on servo motor

Subsequent work

Subsequent work for removing and installing transverse lock servo motor

1. Check the oil in the final drive. -> 399035 Checking and topping up oil for rear final drive 399035 Checking and topping up oil for rear final drive
