Headlamp: Testing and Inspection

LIGHTING (EXT): LIGHTING SYSTEM (for Hatchback): PROBLEM SYMPTOMS TABLE

HINT
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

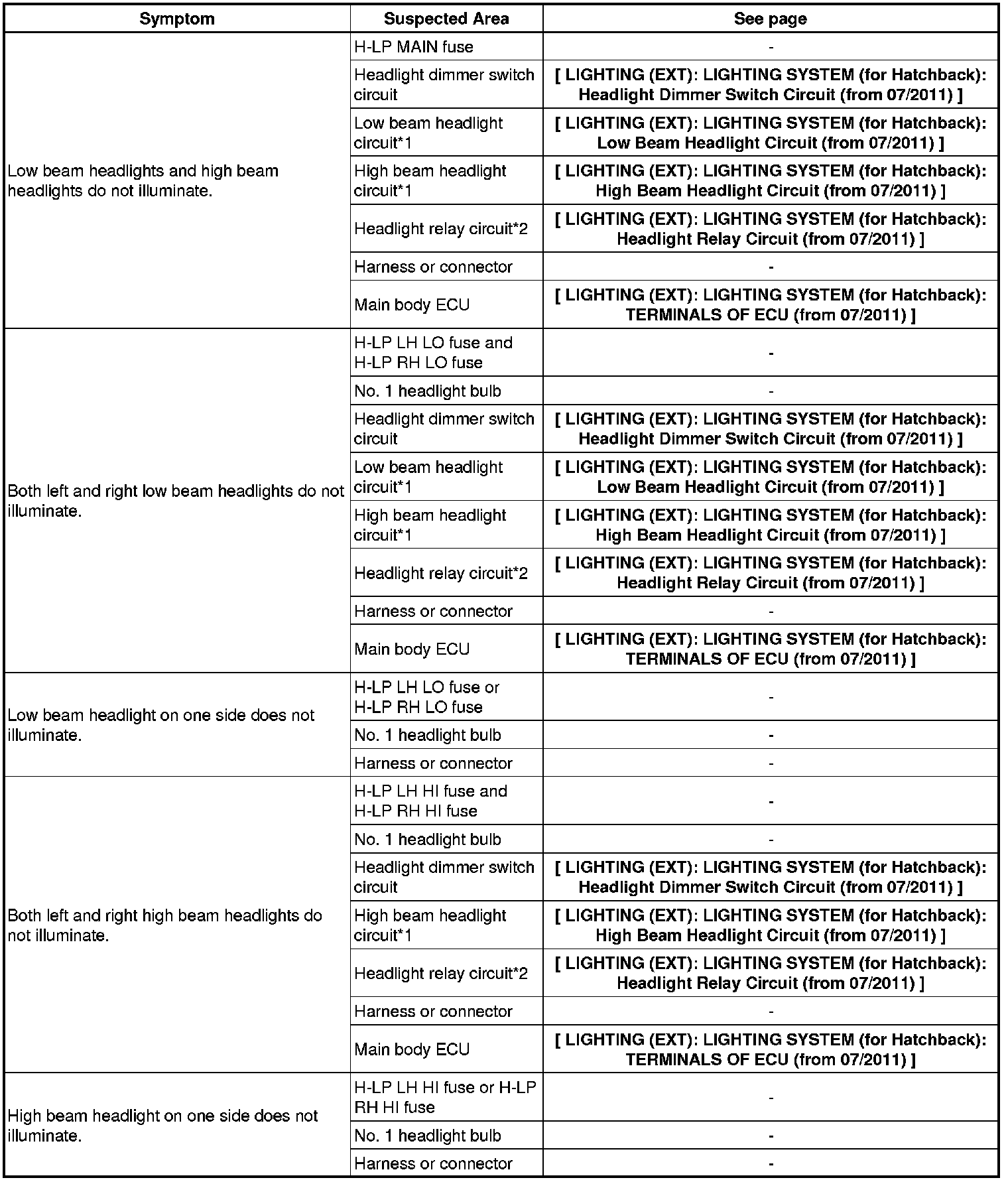

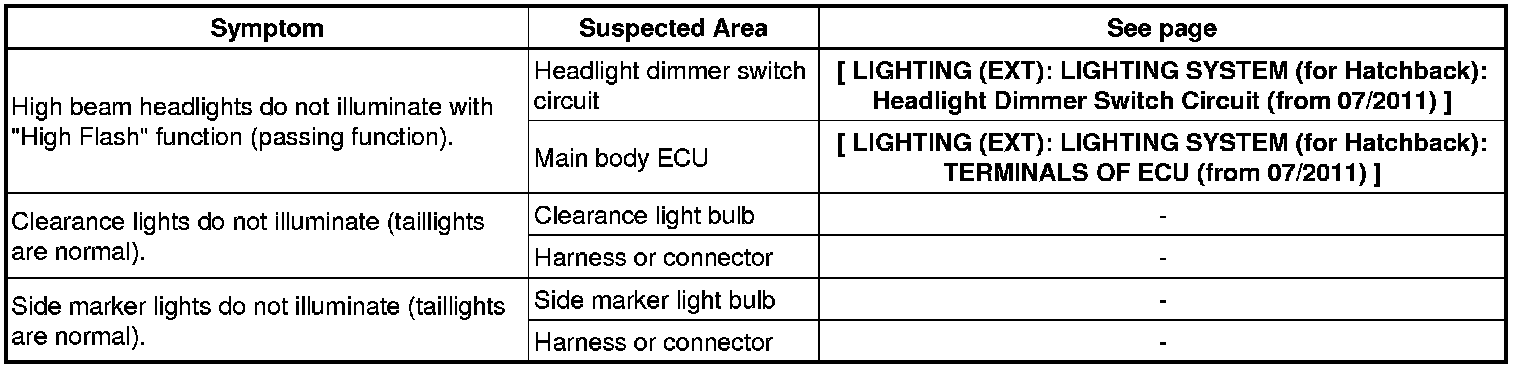

Headlight (w/ Daytime Running Light System or w/ Theft Deterrent System)










* *1: w/ Daytime Running Light System

* *2: w/o Daytime Running Light System

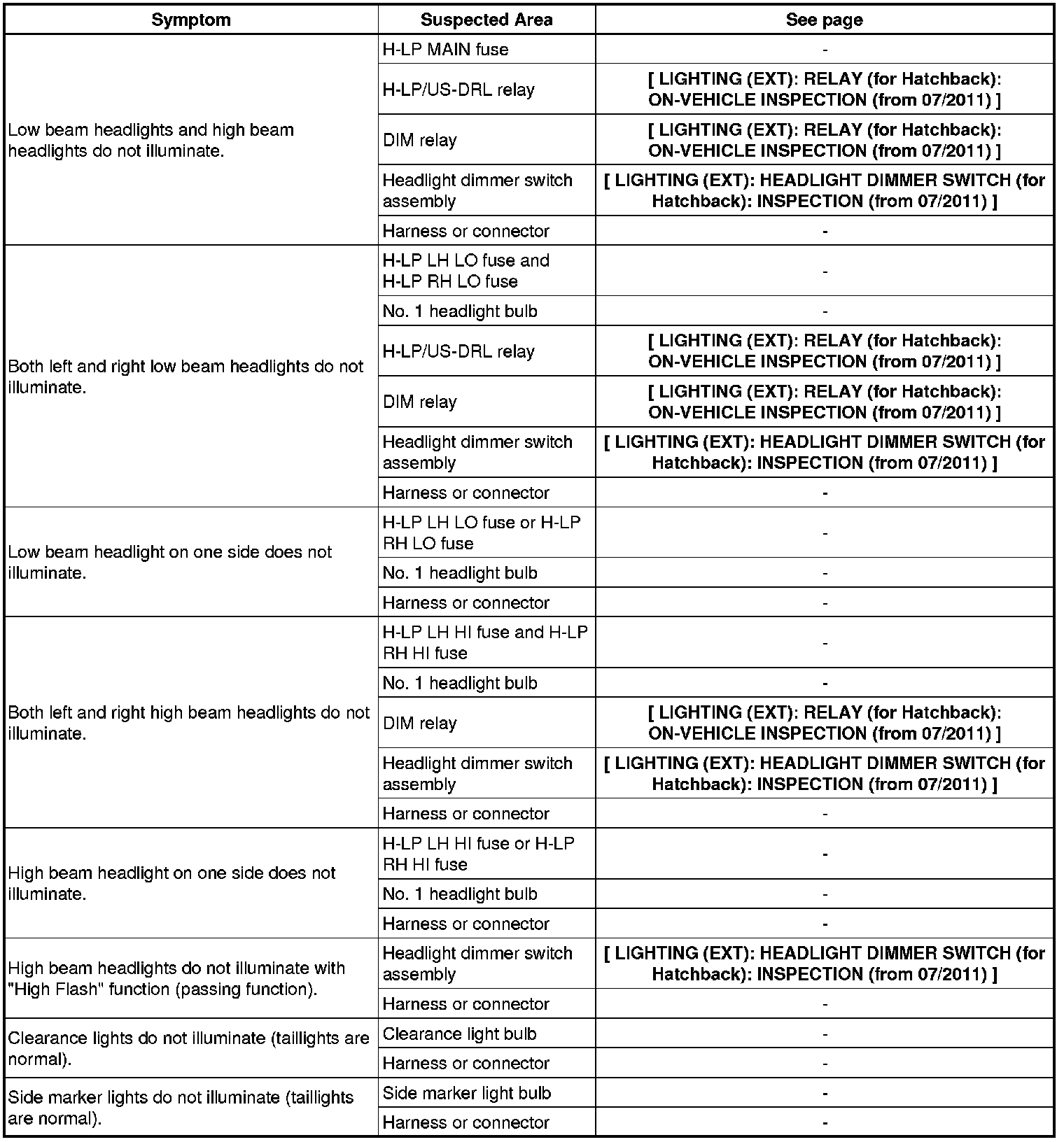

Headlight (w/o Daytime Running Light System and w/o Theft Deterrent System)
