Flywheel: Service and Repair

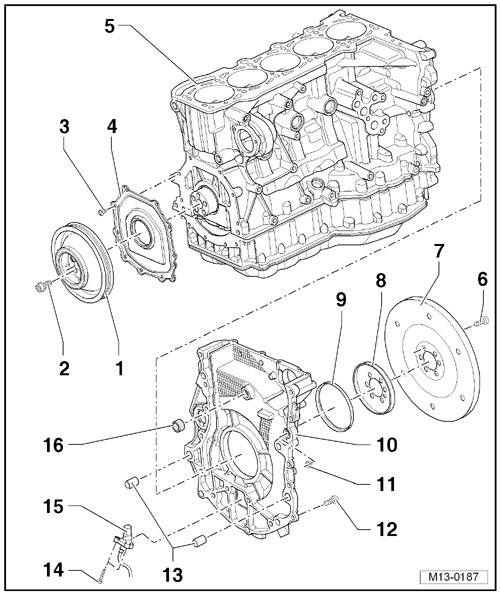

Sealing Flange and Drive Plate/Flywheel Overview






1 Vibration Damper

• Multiple versions are available.

2 Bolt

• 50 Nm + 90° (1/4) additional turn.

• Always replace.

• Only use a strength category 10.9.

• Quantity: 5

3 Bolt

• 10 Nm

4 Sealing Flange, Belt Pulley Side

• With a integrated seal.

• Removing and installing, refer to => [ Sealing Flange, Belt Pulley Side ] Service and Repair.

5 Cylinder Block

6 Bolt

• 60 Nm + 90° (1/4) additional turn.

• Always replace.

7 Drive Plate/Flywheel

• To remove, lock the crankshaft using the locking pin (T40069).

• The flywheel must not be pried off or the timing housing cover will be damaged.

• Drive plate removing and installing, refer to => [ Drive Plate ] Drive Plate.

8 Sensor Wheel

• For the engine speed sensor.

• With position holder.

9 Crankshaft Seal, Transmission Side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Crankshaft Seal, Transmission Side.

10 Control Housing Cover

• Removing and installing, refer to => [ Control Housing Cover ] Service and Repair.

11 O-ring

• Always replace.

12 Bolt

• 25 Nm

13 Alignment Sleeves

14 Bolt

• 5 Nm

15 Engine Speed Sensor (G28).

16 Seal

• Always replace.
