Flywheel: Service and Repair

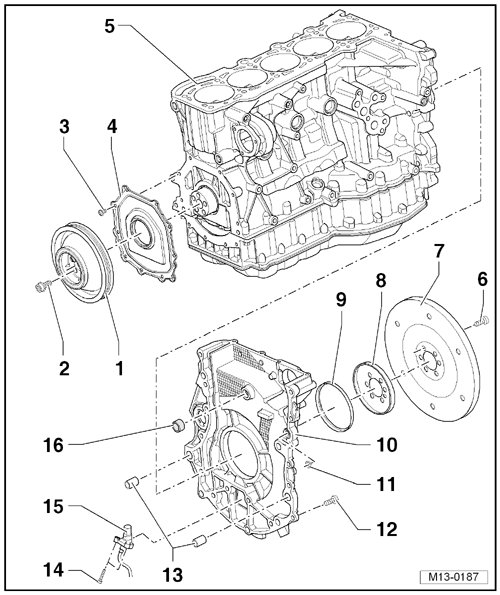

Sealing Flange and Drive Plate/Flywheel Assembly Overview





1 Crankshaft pulley/vibration damper

• Multiple versions.

2 Bolt

• Quantity: 5

• Always replace.

• Only use strength category 10.9.

• 50 Nm + 90° (1/4 turn) additional turn.

3 Bolt, 10 Nm

4 Sealing flange, belt pulley side

• With integrated seal.

• Removing and installing, refer to --> [ Sealing Flange, Belt Pulley Side ] Service and Repair.

5 Cylinder block

6 Bolt, 60 Nm + 90° (1/4 turn) additional turn

• Always replace.

7 Drive plate/flywheel

• To remove, secure the crankshaft using locking pin (T40069).

• Flywheel must not be pried out or timing housing cover will be damaged

• Drive plate removing and installing, refer to --> [ Drive Plate ] Drive Plate.

8 Sensor wheel

• For the Engine Speed (RPM) sensor.

• With position holder.

9 Seal, transmission side

• Removing and installing, refer to --> [ Crankshaft Seal, Transmission Side ] Crankshaft Seal, Transmission Side.

10 Control housing cover

• Removing and installing, refer to --> [ Control Housing Cover ] Service and Repair.

11 O-ring

• Always replace.

12 Bolt, 25 Nm

13 Alignment sleeves

14 Bolt, 5 Nm

15 Engine Speed (RPM) sensor (G28)

16 Seal

• Always replace.
