ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

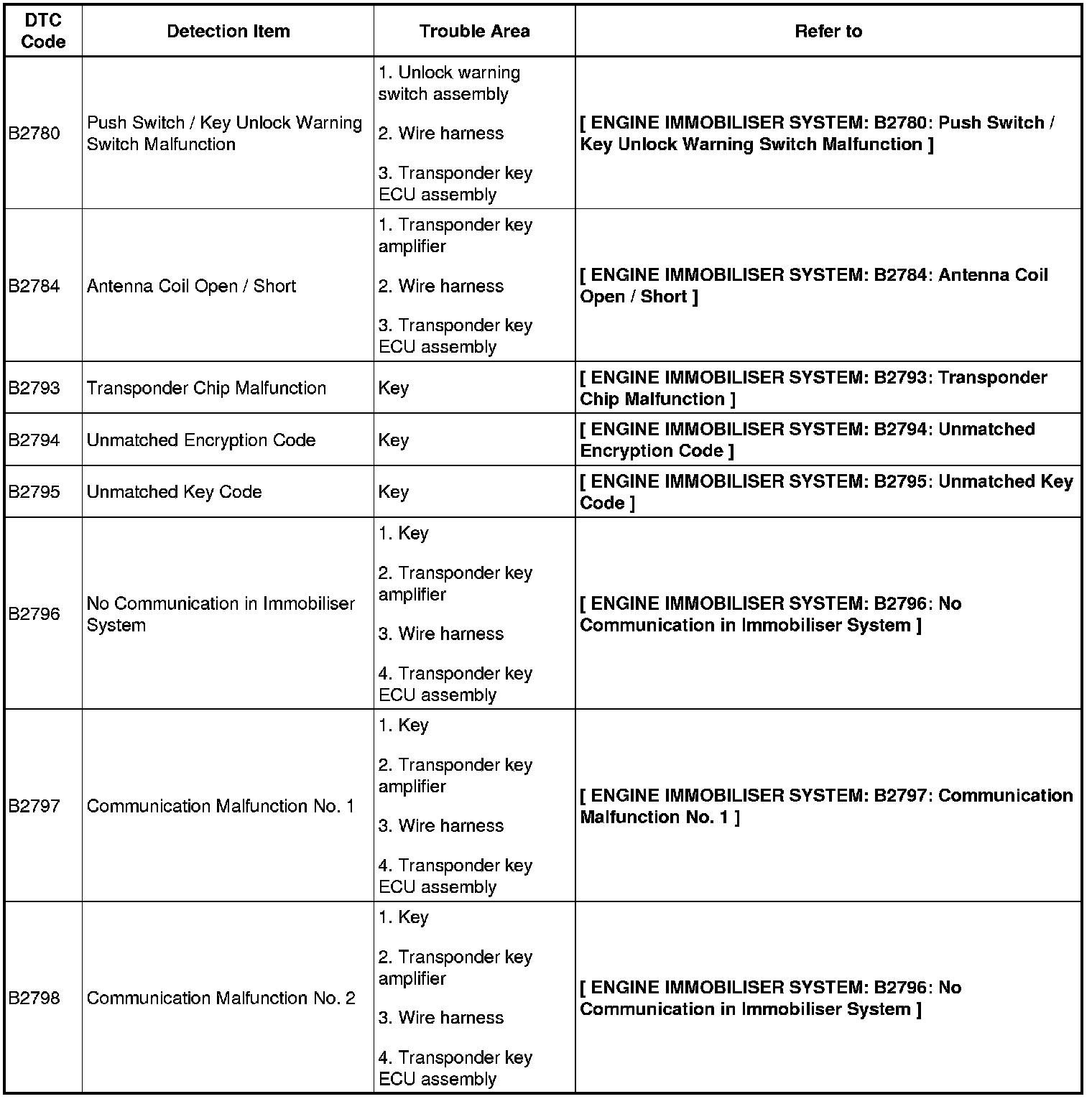

TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART
DTC B2780-B2798:
ECM DIAGNOSTIC TROUBLE CODE CHART
DTC B2799-B279C:
