Symptom Related Diagnostic Procedures

WIPER AND WASHER: WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

WIPER AND WASHER SYSTEM:

Symptom Chart (Part 1):

Symptom Chart (Part 2):

*1: Inspect wiper arm and blade set position

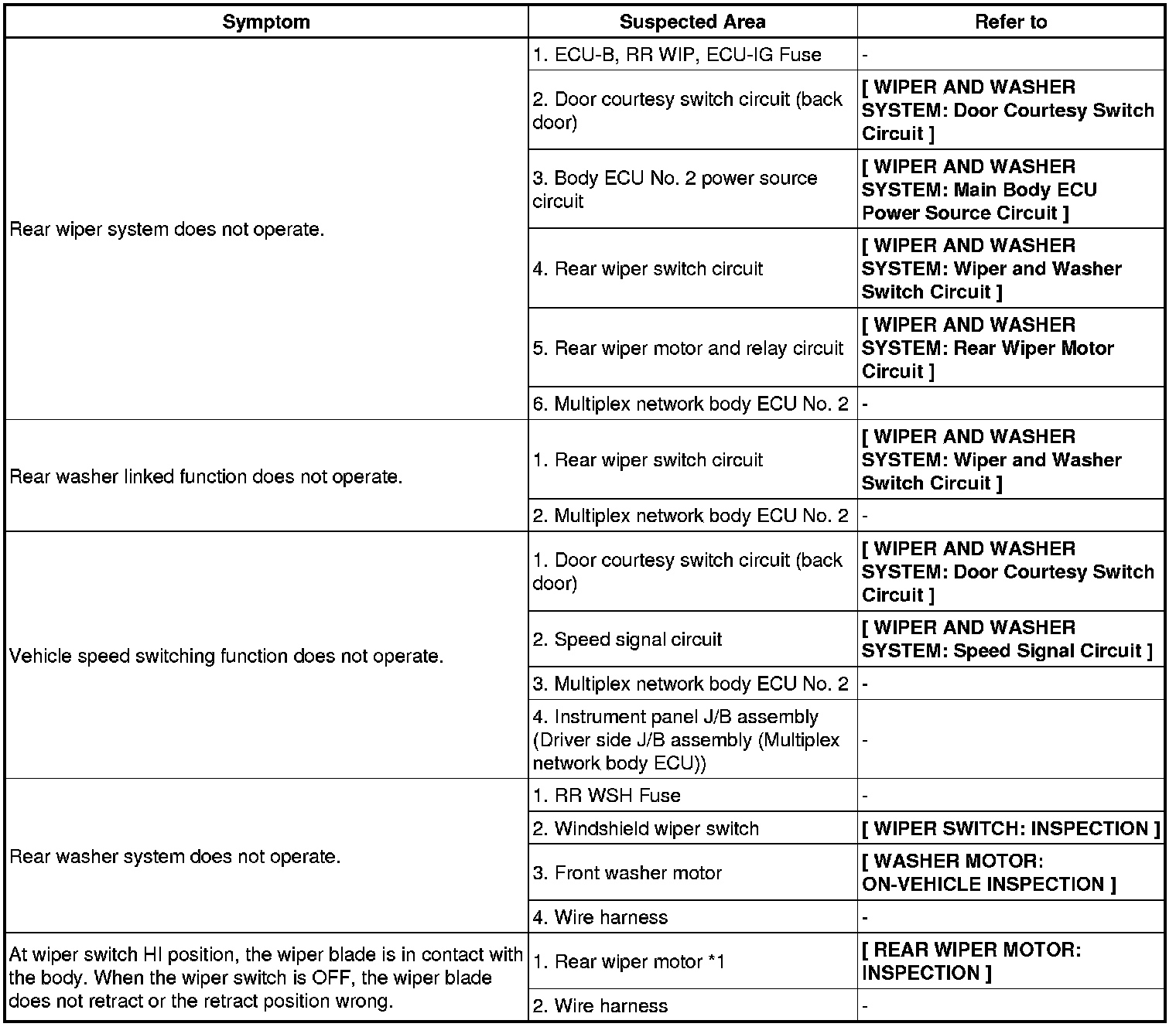

REAR WIPER AND WASHER SYSTEM:

Symptom Chart (Part 3):

*1: Inspect wiper arm and blade set position

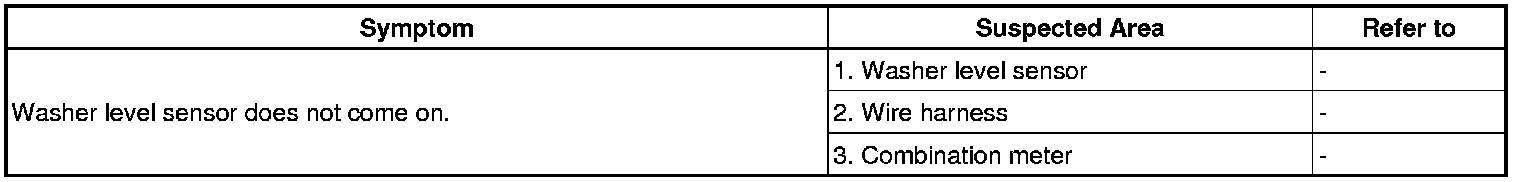

WASHER LEVEL WARNING SYSTEM:
