NETWORKING: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

NETWORKING: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

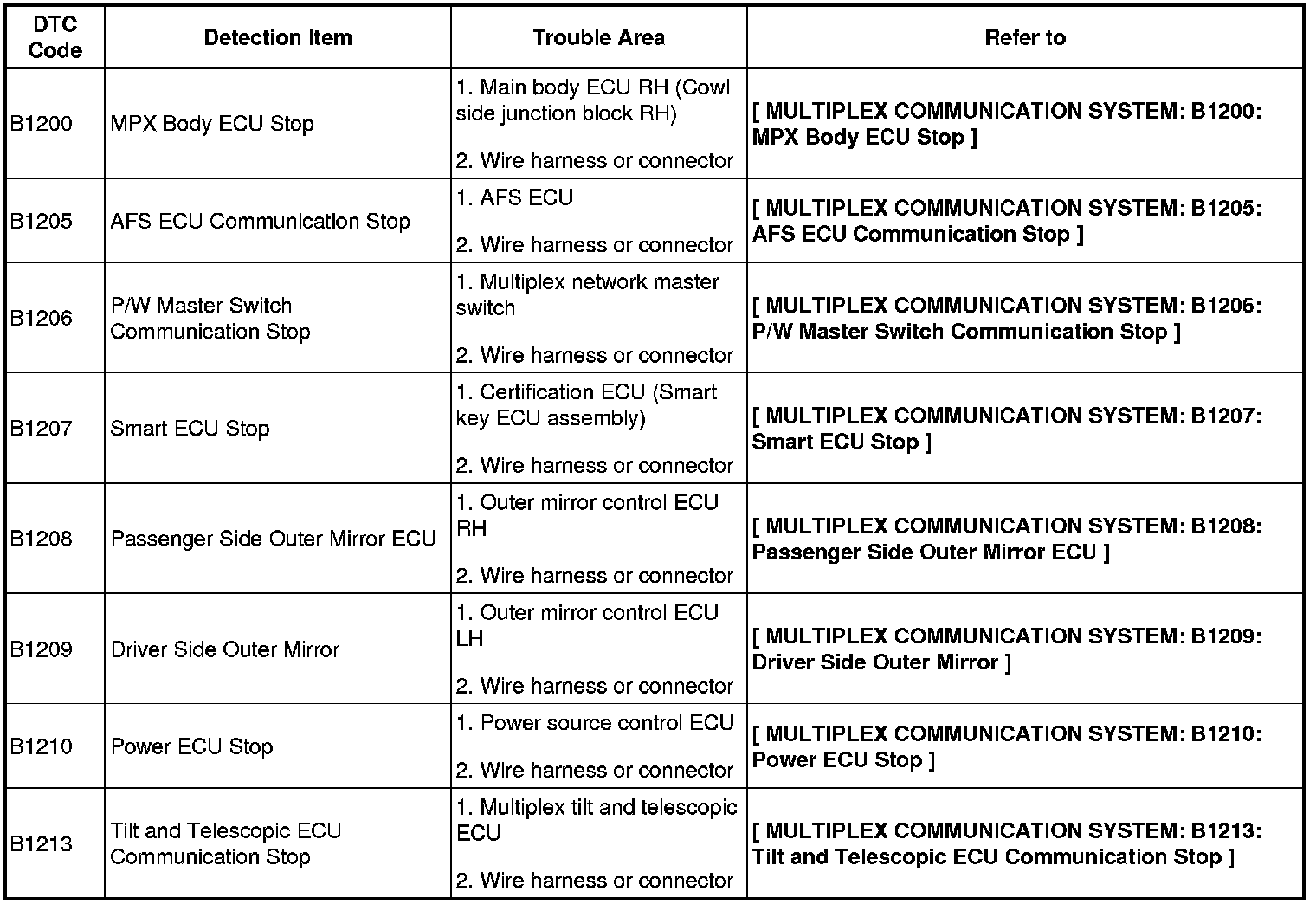

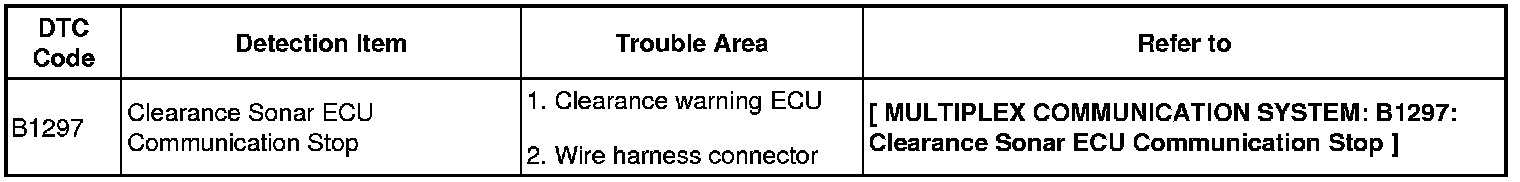

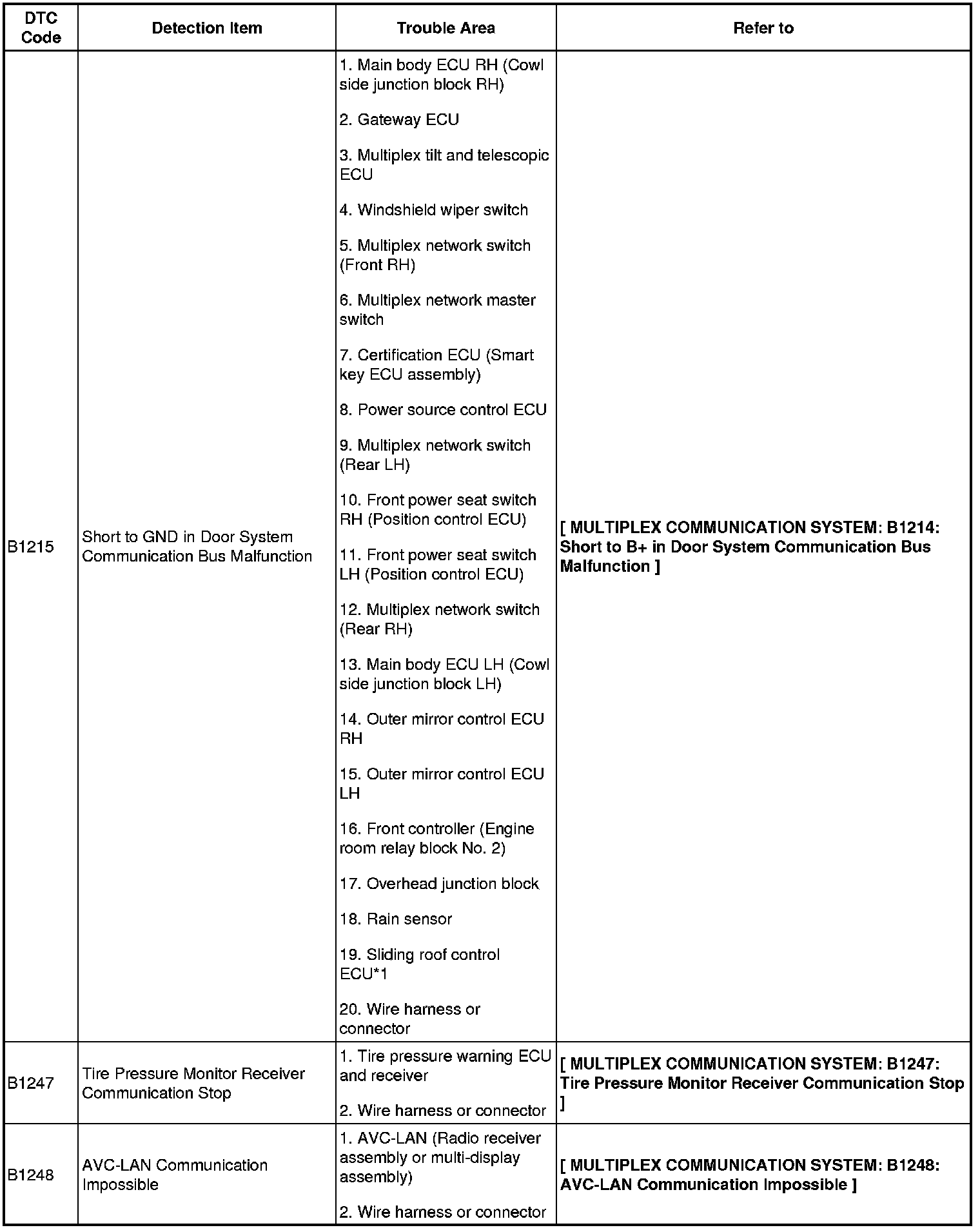

If malfunction code is displayed during DTC check, check the circuit corresponding to the code in the table below.

Multiplex Communication System (BEAN)





















If "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTCs (B1200, B1206, B1207, B1208, B1209, B1210, B1213, B1272, B1273, B1278, B1279, B1280, B1289 and B1296), please repair the "+B of GND short malfunction of communication bus" DTCs first.
If "+B of GND short malfunction of communication bus" DTCs (B1266 and B1267)are detected at the same time as "communication stop" DTCs (B1205, B1247, B1262, B1271 and B1297), please repair the "+B or GND short malfunction of communication bus "DTCs first.
HINT:
*1: w/ Sliding Roof
