Symptom Related Diagnostic Procedures
LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
1. HEADLIGHT AND TAILLIGHT SYSTEM
2. AUTOMATIC LIGHT CONTROL SYSTEM
3. LIGHT AUTO TURN OFF SYSTEM
4. FOG LIGHT SYSTEM
5. TURN SIGNAL AND HAZARD WARNING SYSTEM
6. STOP LIGHT SYSTEM
7. ILLUMINATED ENTRY SYSTEM

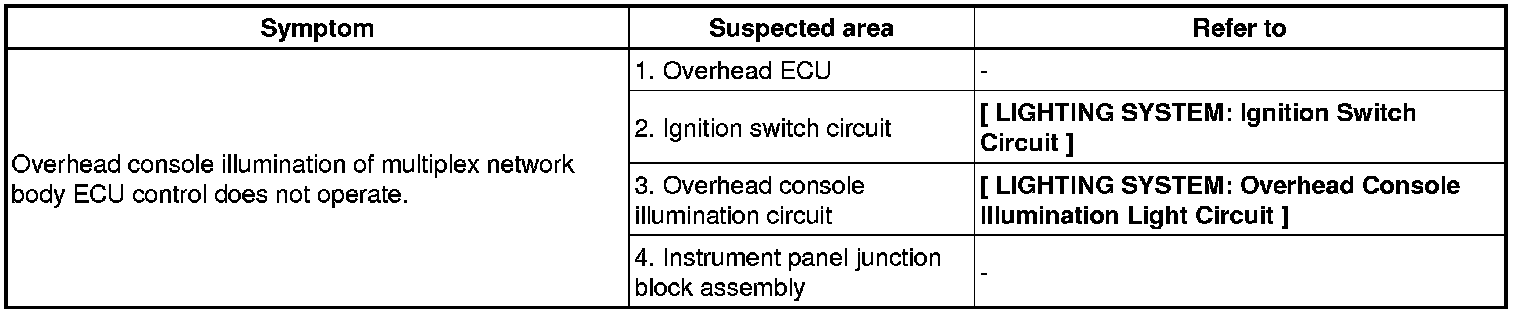

8. OVERHEAD CONSOLE ILLUMINATION SYSTEM
9. STEP LIGHT SYSTEM

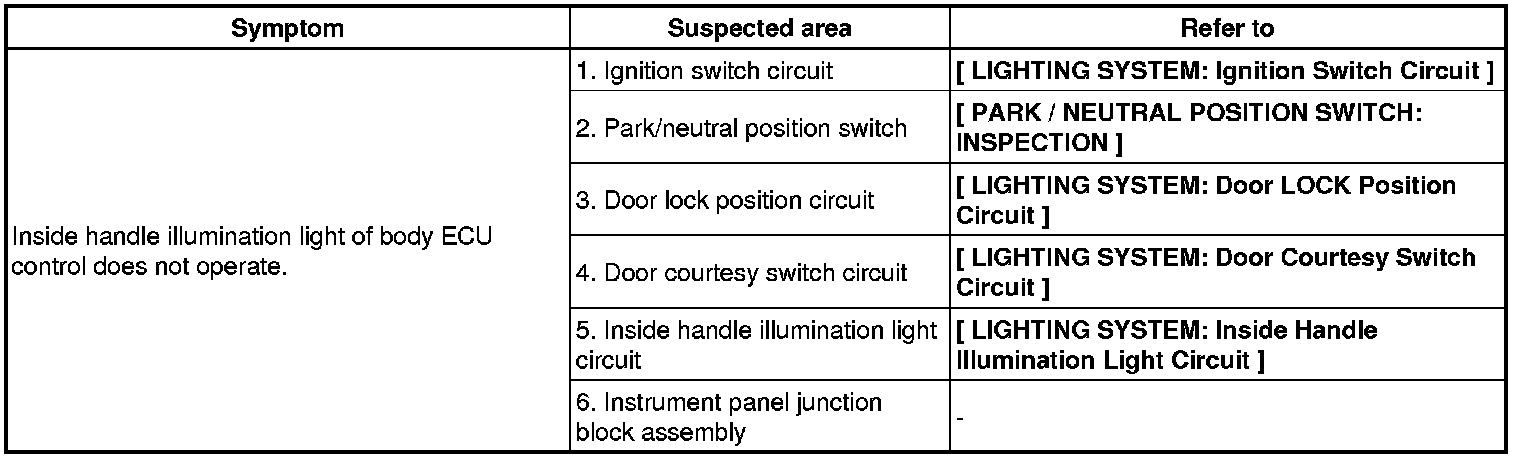

10. INSIDE HANDLE ILLUMINATION LIGHT SYSTEM
11. HEADLIGHT BEAM LEVEL CONTROL SYSTEM

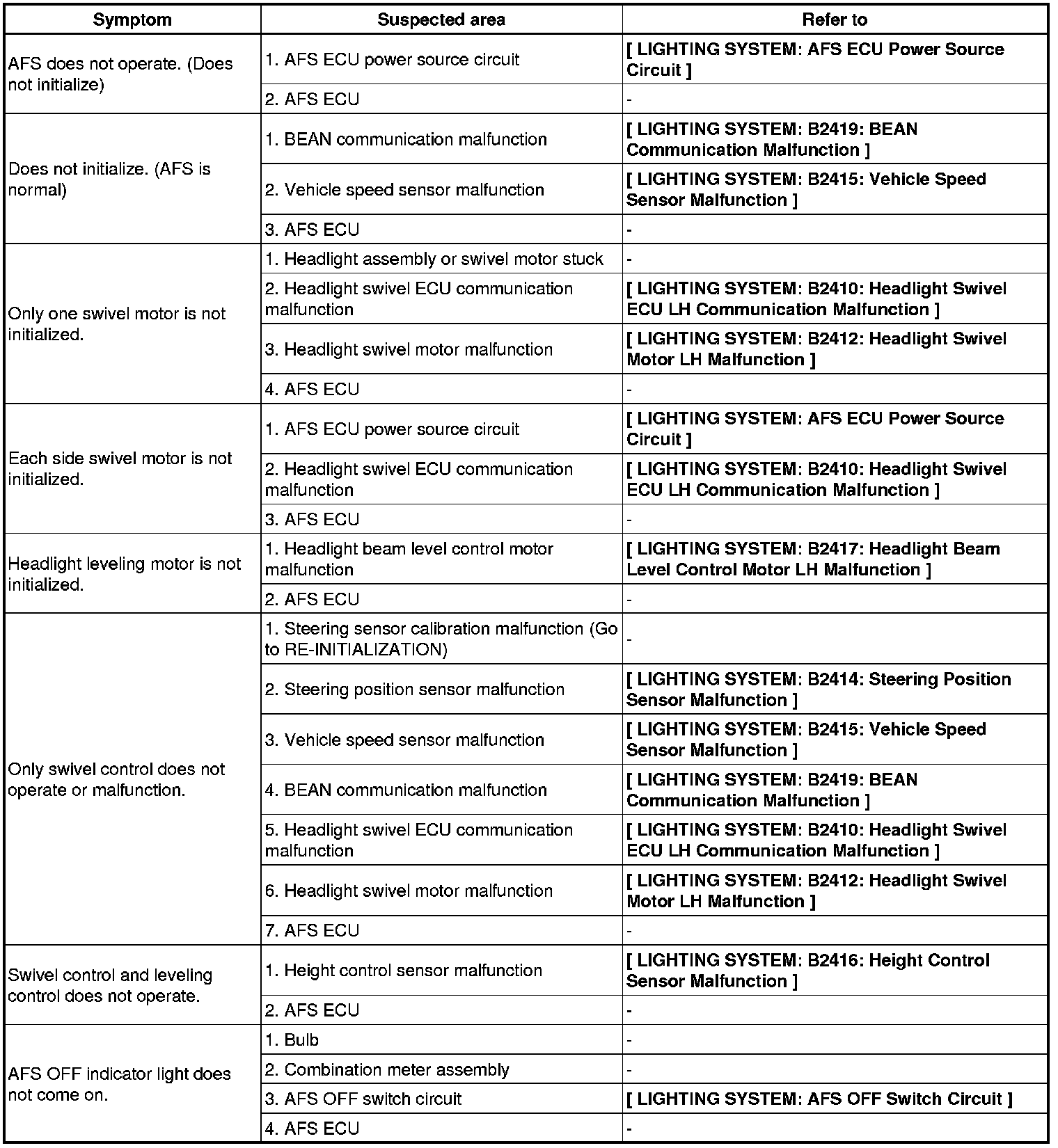

12. AFS

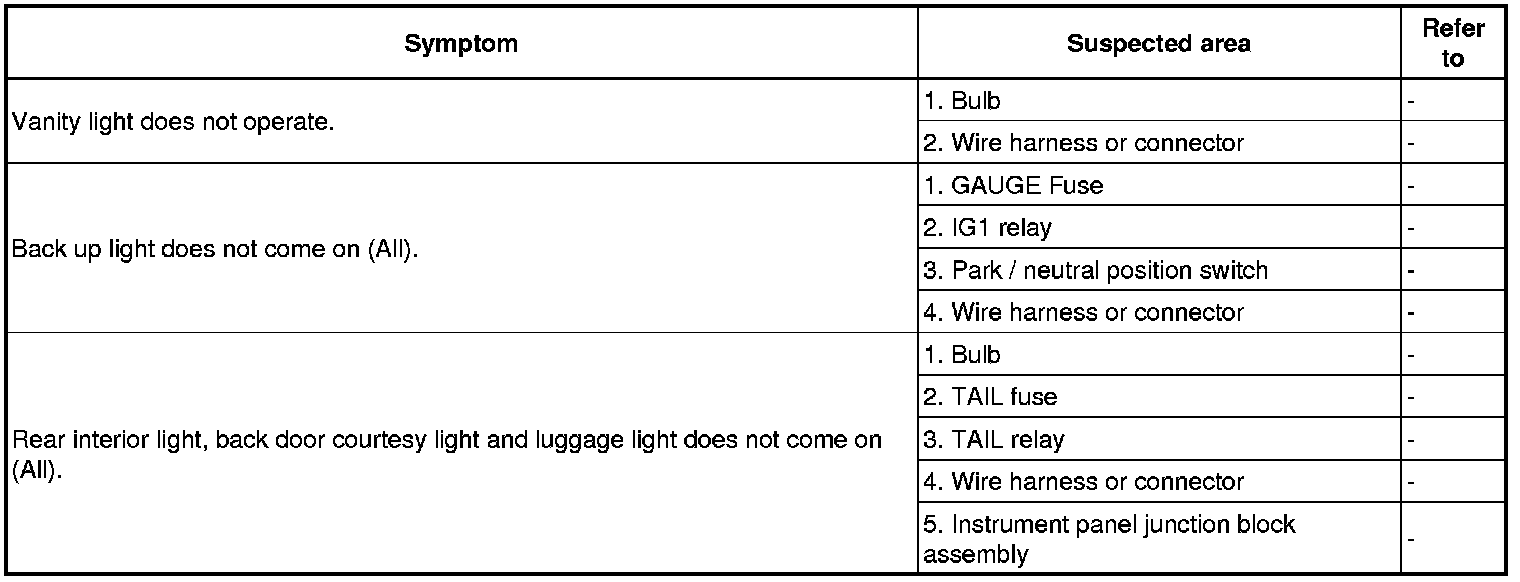

13. OTHERS
