P Codes

IMPORTANT: Diagnostic trouble codes should be used only for purposes of diagnosing faults. It is not absolutely certain that they indicate a faulty component.

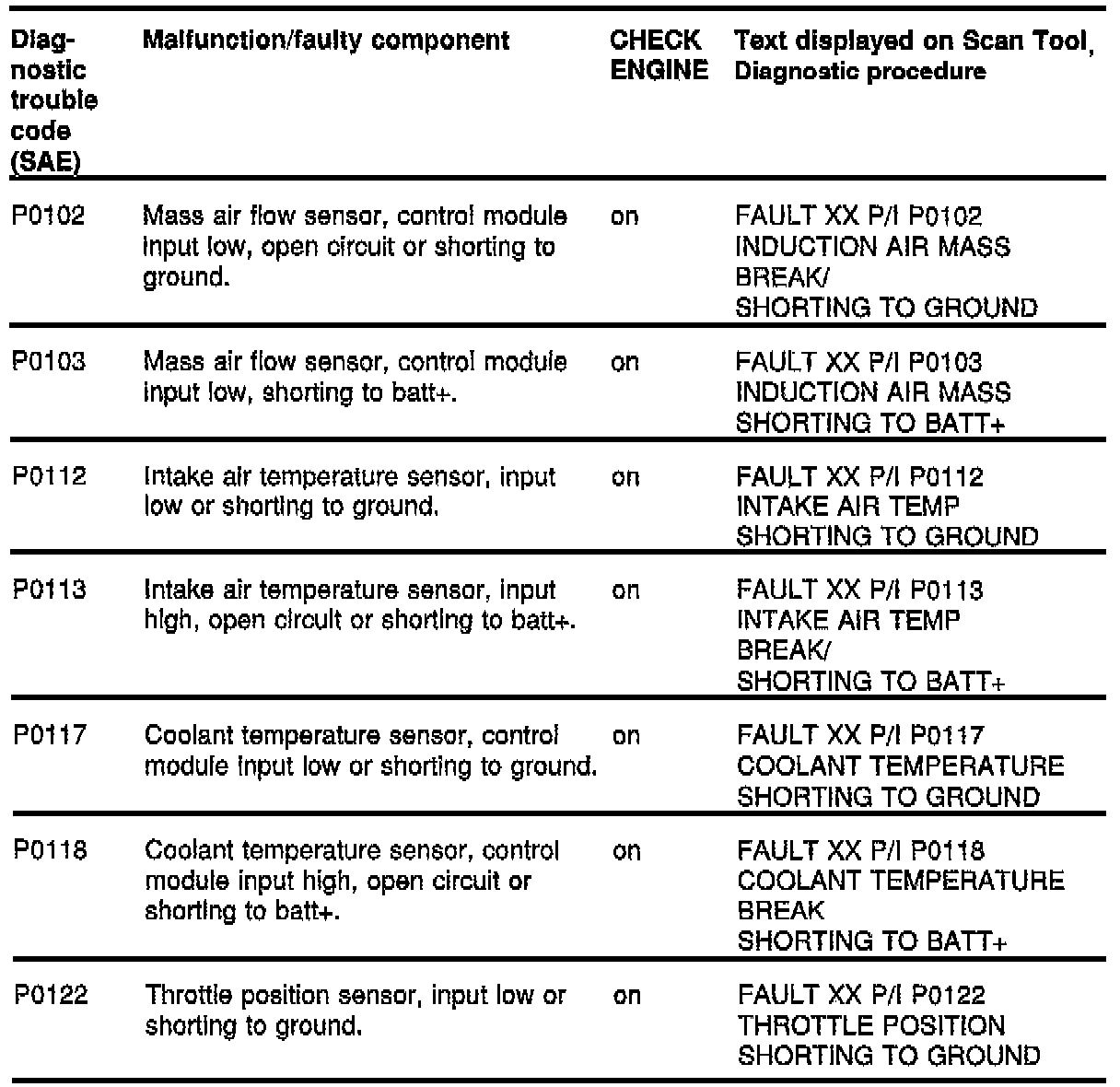

Chart 1 of 6, DTC P0102 - P0122

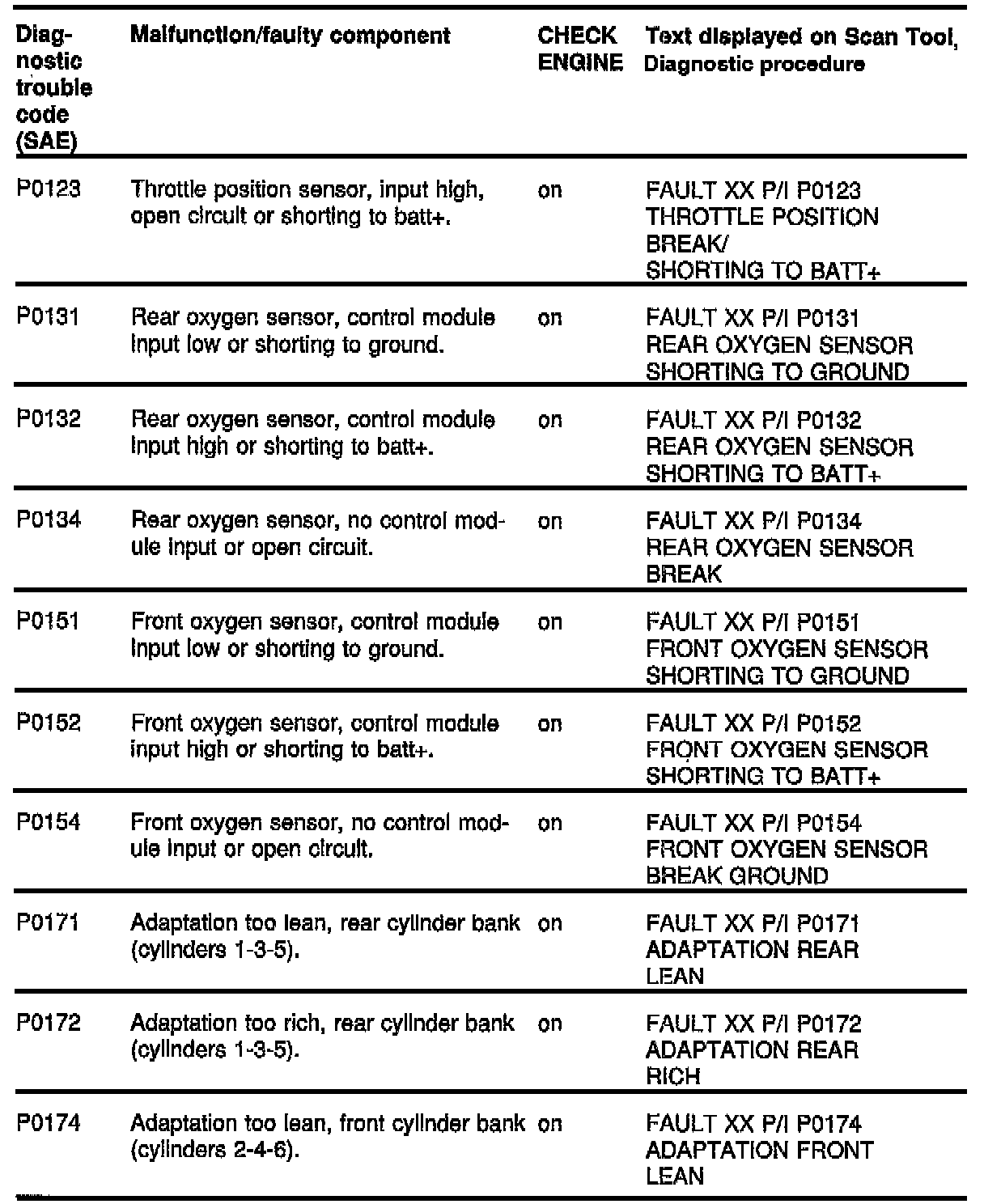

Chart 2 of 6, DTC P0123 - P0174





Chart 3 of 6, DTC P0175 - P1002

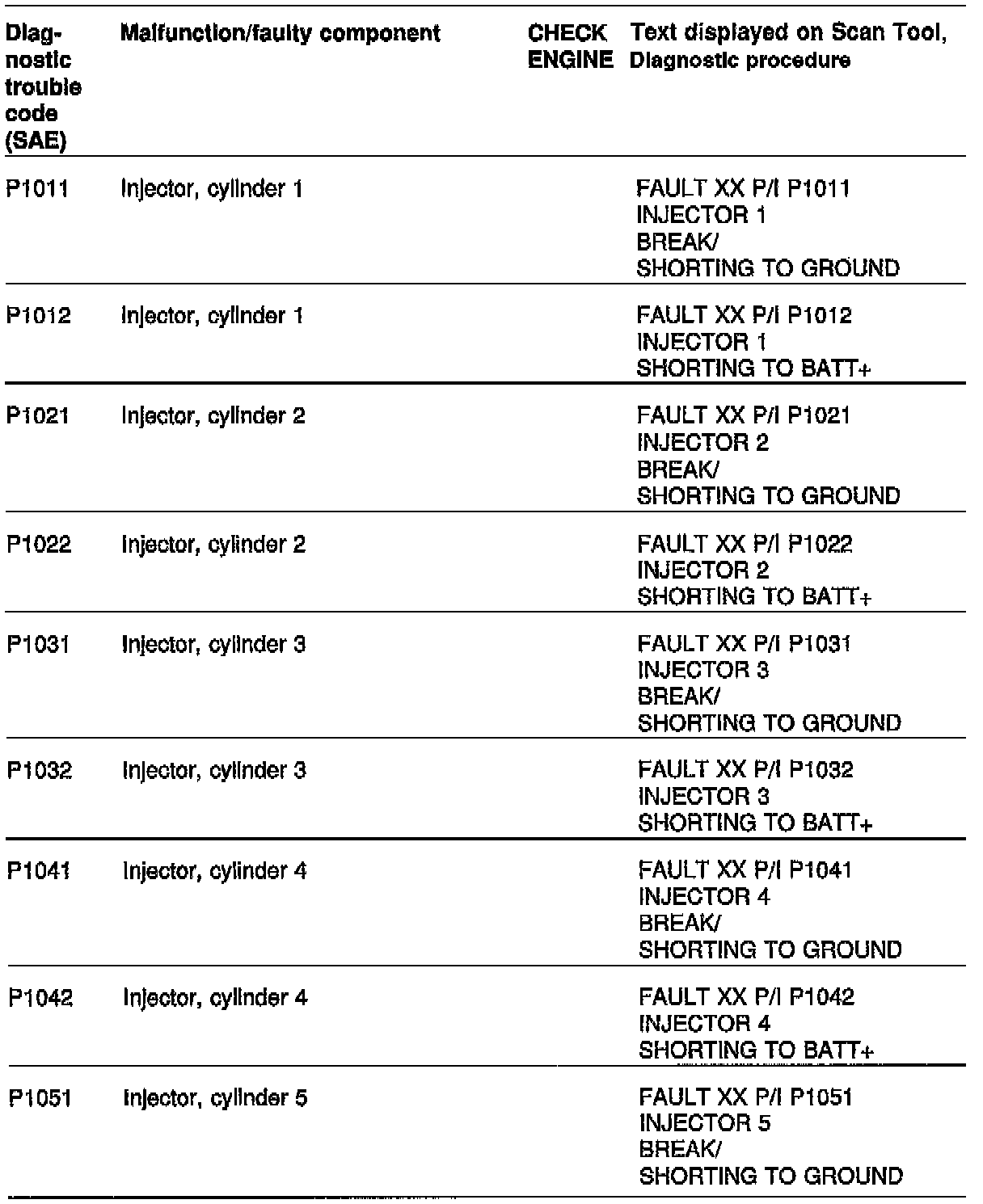

Chart 4 of 6, DTC P1011 - P1051





Chart 5 of 6, DTC P1052 - P1246





Chart 6 of 6, DTC P1247 - P1631
